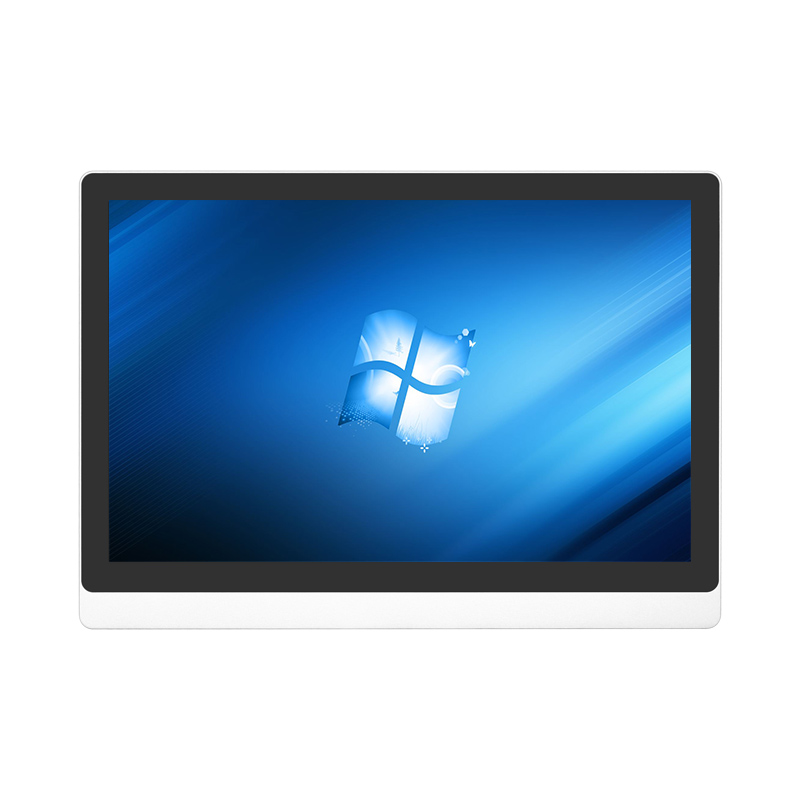

Industrial Touch Panel Pc
industrial panel pc embedded computer touchscreen panel pc industrial
FEATURES:
1. Super thin and ultra narrow bezel, Fully enclosed design, the whole PC is dustproof.
2. Seamless design, front panel IP65 waterproof.
3. Full aluminim alloy enclosure with paint spraying and dull polish, anti-EMI, corrosion resistance, excellent performance of heat dissipation.
4. Industrial LCD panel, wide viewing angle, high nits, true color.
5. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
6. High performance motherboard, 7x24 continuous operation.
7. Support wall mounting, desk stand, embedded mounting.
8. 3 COM optional, RS232/RS422/RS485 optional.
Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.
industrial touch screen pc Specification:
|
PC
|
|
CPU
|
Intel® Celeron J1900, quad core, 2.0GHz, fanless
|
|
Chipset
|
Intel ValleyView SSA-CUnit
|
|
Memory
|
2G DDR3
|
|
Hard Drive Capacity
|
32G SSD
|
|
Hard Drive Optional
|
SSD: 64G, 128GB, 256GB
|
|
HDD: 500GB, 1TB
|
|
Graphics
|
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
|
|
Audio
|
Realtek ALC662, High Definition Audio (HD), Line in, Line out
|
|
Network
|
1xRealtek RTL 8111E Gigabit Ethernet controller
|
|
Wireless Network
|
WIFI
|
|
I/O Interface
|
2xUSB 2.0, 2xCOM RS232
|
|
1xVGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
|
|
Operation System
|
Support Windows 7/8/10, Linux, Ubuntu, Debian, etc.
|
|
LCD panel
|
|
Panel size
|
8"-21.5"
|
|
Support Color
|
16.7M colors
|
|
Brightness (cd/m²)
|
300+
|
|
Response time
|
5ms
|
|
Backlight type
|
LED
|
|
Backlight life time
|
≥50K hours
|
|
View angle
|
80°/80°/80°/80° (R/L/U/D)
|
|
Touch panel
|
|
Touchscreen Type
|
Project Capacitive Touch (10 points)
|
|
Touch options
|
5 wire resistive touch
|
|
Power Supply
|
|
External Power Supply
|
AC 100-240V
|
|
Working voltage
|
DC 12V
|
|
Enclosure
|
|
Material
|
Aluminum Alloy
|
|
Color
|
Silver, Black, white, color can be customized
|
|
VESA mounting
|
75x75mm/100x100mm
|
|
IP grade
|
Front panel IP65 waterproof
|
|
Operating Environment
|
|
Temperature Range
|
operating: -10 to 60°C, storage: -20 to 80°C
|
|
Relative humidity
|
5%~95% @ 40° C, non-condensing
|
|
Vibration
|
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
|
|
Other
|
|
Mounting way
|
wall mounting bracket (optional)
|
|
desk stand holder (optional)
|
|
Accessories
|
Power adapter, power cord, user manual, warranty card
|
|
Warranty
|
1 year warranty
|
|
Certificate
|
CE, FCC, RoHS
|
Shinho is a China supplier of Wall Mounting Touch Monitor. We have a high-tech work shop on touch screen industrial pc. We have a complete quality management system. Choose us, you can be get most careful and thoughtful service!
