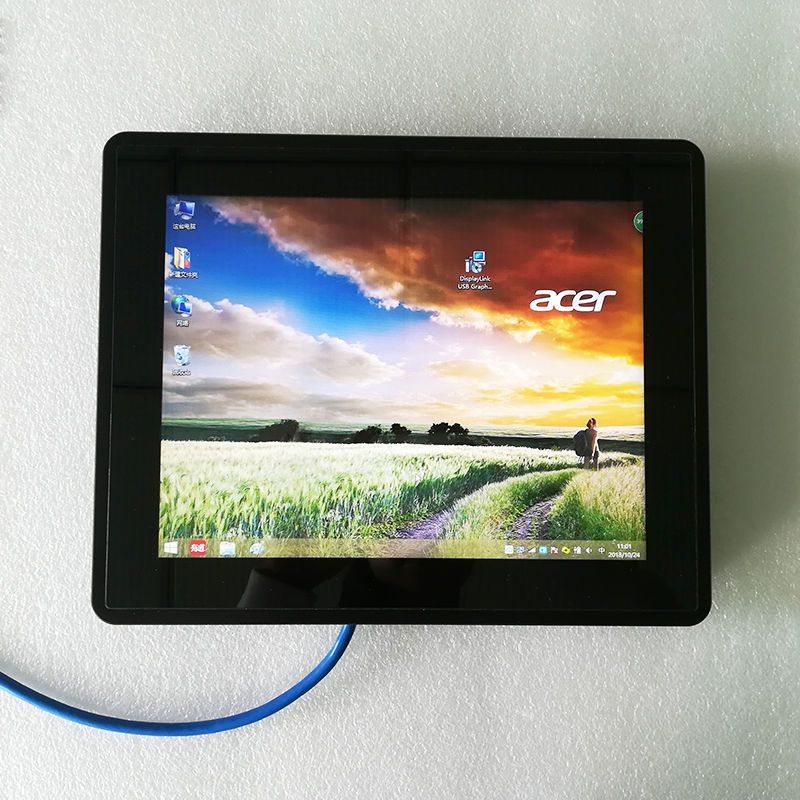

10.4 Inch USB Powered Touch Monitor
FEATURES:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front IP65 waterproof and dustproof.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. High performance mainboard, 7x24 continuous operation.
5. Support wall mounting, embedded mounting, desk stand mouting etc.
6. Support video signal, power and touch over a single USB3.0 cable.
Hot Sale USB Powered Touch Monitor:Shenzhen Shinho Electronic Technology Co., Ltd.Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.
SPECIFICATION:
|
LCD panel
|
|
Panel size
|
10.4"
|
|
Resolution
|
1024*768
|
|
Aspect ratio
|
4:3
|
|
Support Color
|
16.7M colors
|
|
Brightness (cd/m²)
|
400+
|
|
Contrast ratio
|
800:1
|
|
View angle
|
80°/80°/80°/80° (R/L/U/D)
|
|
Touch panel
|
|
Touchscreen Type
|
Project Capacitive Touch (10 points )
|
|
Surface Hardness
|
7H
|
|
Luminousness
|
90%
|
|
Touch Interface
|
USB (RS232 optional)
|
|
Touch response time
|
2ms
|
|
Working Life
|
>50 million times
|
|
Touch options
|
(5 wires restive touch, IR touch optional)
|
|
Signal Ports
|
|
USB
|
1×USB (support video signal, power, and touch over a single USB3.0 cable)
|
|
OSD
|
|
OSD control
|
Brightness, contrast ratio, auto adjustment, H/V position, language select, etc.
|
|
Support languages
|
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc.
|
|
Support OS
|
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android, ect.
|
|
Power Supply
|
|
External Power Supply
|
AC 100 - 240V, 50-60Hz
|
|
Working voltage
|
DC 12V
|
|
Power consumption
|
≤15W
|
