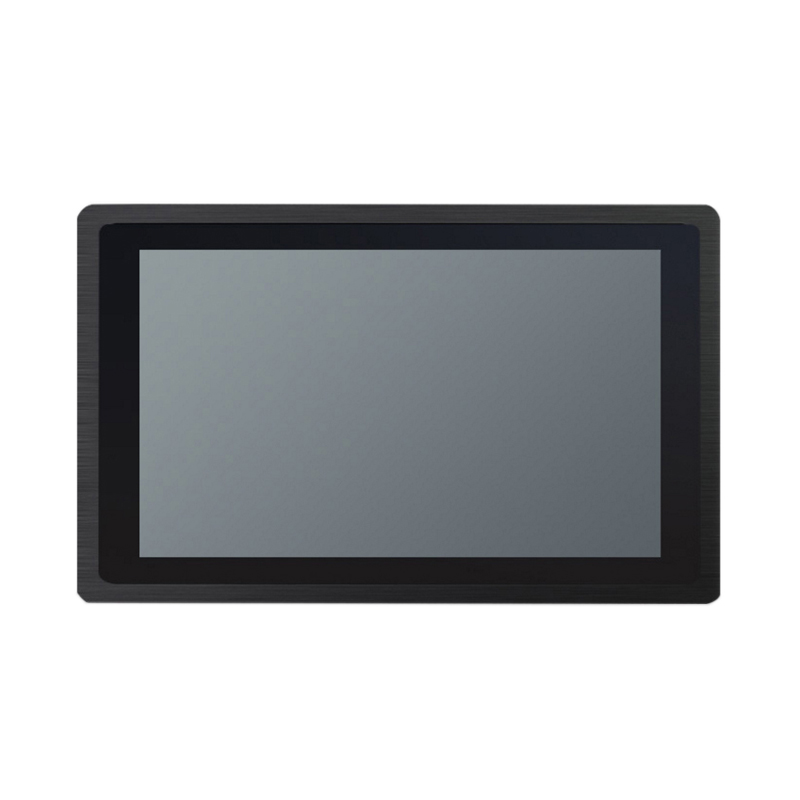

24 inch touch screen monitor
24 inch Touch Screen LCD Monitor with HDMI VGA USB DVI Input
Features:
Front IP65 waterproof and dustproof .
Industrial LCD panel, wide viewing angle, high nits, true color.
Adopt multi-points PCAP touch panel , with 3MM tempered glass, high sensitive and fast-response.
High performance mainboard, 7x24 continuous operation.
Support wall mounting, embedded mounting, desk stand mouting etc.
1000 nits, sunlight readable, 3MM ultra-thin front bezel, ideal for embedded in outdoor kiosk.
Built-in fan for heat dissipation.
waterproof industrial monitor supplier:Shenzhen Shinho Electronic Technology Co., Ltd.Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.
|
Model: SL24
|
|
LCD panel
|
|
Panel size
|
24"
|
|
Resolution
|
1920*1080
|
|
Aspect ratio
|
16:9
|
|
Support Color
|
16.7M colors
|
|
Brightness (cd/m²)
|
1000nits, sunlight readable
|
|
Contrast ratio
|
1000:1
|
|
View angle
|
80°/80°/80°/80° (R/L/U/D)
|
|
Touch panel
|
|
Touchscreen Type
|
Project Capacitive Touch (10 points )
|
|
Surface Hardness
|
3H
|
|
Luminousness
|
90%
|
|
Touch Interface
|
USB (RS232 optional)
|
|
Touch response time
|
2ms
|
|
Working Life
|
>50 million times
|
|
Touch options
|
(5 wires restive touch, IR touch optional)
|
|
Signal Ports
|
|
VGA
|
1×VGA
|
|
HDMI
|
1×HDMI
|
|
Audio in/out
|
Optional
|
|
OSD
|
|
OSD control
|
Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
|
|
Support languages
|
English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
|
|
Support OS
|
Windows XP, Windows /7/8/10, Linux, Mac OS X, Android ect.
|
|
Power Supply
|
|
External Power Supply
|
AC 100 - 240V , 50-60Hz
|
|
Working voltage
|
DC 12V
|
|
Power consumption
|
≤45W
|
|
Enclosure
|
|
Material
|
Aluminum alloy
|
|
Color
|
Black, white, Silver, color can be customized
|
|
VESA mounting
|
75*75mm/100×100mm
|
|
IP grade
|
Front panel IP65 waterproof
|
|
Operating Environment
|
|
Temperature Range
|
Operating: -20 to 70°C, storage :-20 to 80°C
|
|
Relative humidity
|
Operating: 10% to 80% , storage :5% to 90%
|
