Embedded Touch Panel PC

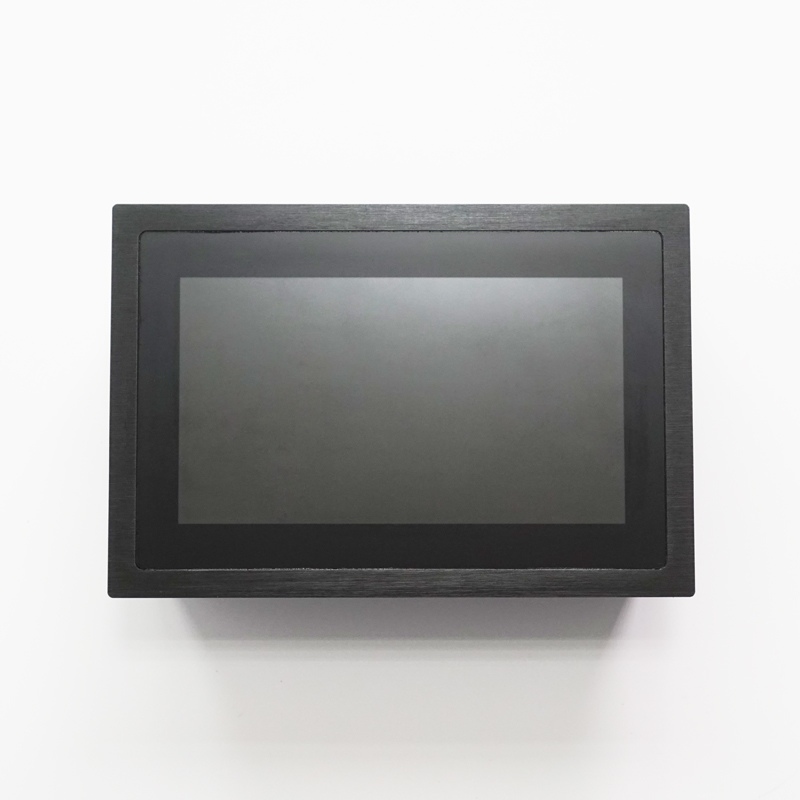

7 inch industrial embedded touch panel tablet pc
FEATURES:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide operating temperaturer: -20 ~ 70 °C, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. Cover with AG glass, Anti-glare.
5. EETI touch controller.
6. High performance motherboard, 7x24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
Our company supply Embedded Touch Panel PC, Industrial Android Tablet PC, Stainless Steel Touch Panel Pc, Industrial Touch Monitor, Open Frame Touch Monitor, we have a whole set of quality Full IP65 High Brightness Touch Monitor. If you have interested in our Touch Screen Industrial PC, pls feel free to contact us.
industrial embedded panel pc SPECIFICATION:
|
PC
|
|
CPU
|
Intel® Celeron J1900, quad core, 2.0GHz, fanless
|
|
Chipset
|
Intel ValleyView SSA-CUnit
|
|
Memory
|
2G DDR3 (4G, 8G optional)
|
|
Hard Drive Capacity
|
64G SSD
|
|
Hard Drive Optional
|
SSD: 32G, 128GB, 256GB
|
|
HDD: 500GB, 1TB
|
|
Graphics
|
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
|
|
Audio
|
Realtek ALC662, High Definition Audio (HD), Line in, Line out
|
|
Network
|
1×Realtek RTL 8111E Gigabit Ethernet controller
|
|
Wireless Network
|
WIFI
|
|
I/O Interface
|
2×USB 2.0, 2×USB 3.0, 2 x COM RS232
|
|
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
|
|
Operation System
|
Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
|
|
LCD panel
|
|
Panel size
|
7"
|
|
Resolution
|
1024*600
|
|
Aspect ratio
|
16:9
|
|
Support Color
|
16.7M colors
|
|
Brightness (cd/m²)
|
1000 nits, sunlight readable
|
|
Response time
|
5ms
|
|
Contrast ratio
|
800:1
|
|
View angle
|
75°/75°/75°/75° (R/L/U/D)
|
|
Touch panel
|
|
Touchscreen Type
|
Project Capacitive Touch (10 points)
|
|
Touch Interface
|
USB (RS232 optional)
|
|
Touch response time
|
2ms
|
|
Luminousness
|
90%
|
|
Surface Hardness
|
7H
|
|
Working life
|
>50 million times
|
|
Touch options
|
(5 wire resistive touch, IR touch optional)
|
Hot Sale Various High Quality Embedded Industrial PC from China leading manufacturer. Our Customized Panel PC is cost effective and deliver more benefits. Welcome to choose us!
