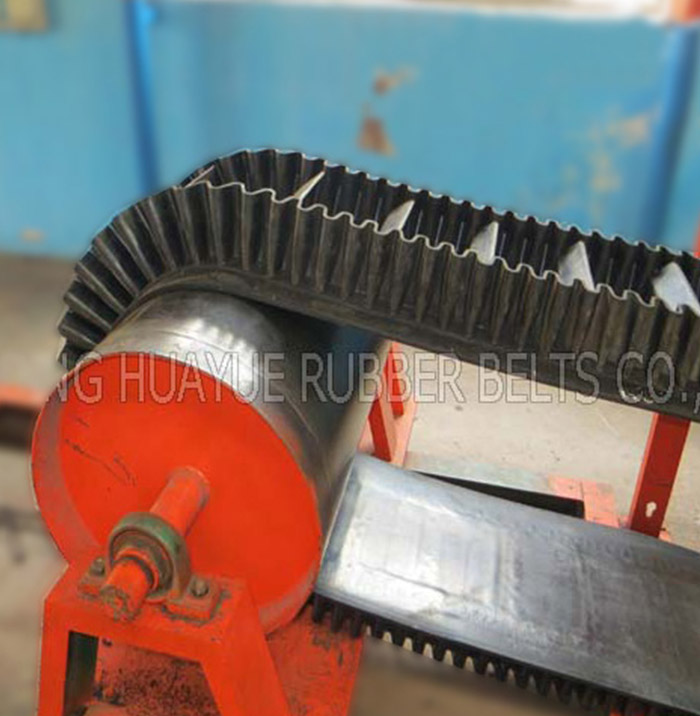

Steep Angle Sidewall Conveyor Belt


Baoding Huayue Rubber Belts Co., Ltd.
Category: Rubber & Plastics

$1.00/1

Short Description
Steep Angle Sidewall Conveyor Belt




Steep Angle Sidewall Conveyor Belt, Nylon Conveyor Belt, Rubber Conveyor Belts Manufacturer

1. Applications

Steep Angle Sidewall Conveyor Belt is normally used for transportation at angle up to 90 degree. It also used together with belt conveyor for horizontal & short-distance transportation. (no cleats the moment)

The belt is twice vulcanized through base belt (trough degree≤0.03), sidewall, cleat (no cleat needed when horizontal transportation).



2. Structure

Sidewall conveyor belt consists of base belt, sidewalls and cleats. There are usually transverse steel wire reinforcement inside top & bottom covers of the base belt.



3. Sidewall conveyor belt specification

Belt width (mm)

Sidewall height (mm)

Cleat height (mm)

Effective belt width (mm)

400

60



-

80

70

100

90

120

100

500

60



250

80

70

100

90

120

110

160

140

650

60



250, 300, 350

80

70

100

90

120

110

160

140

200

180

800

60



350, 410, 460

80

70

100

90

120

110

160

140

200

180

240

220

1000

60



460, 550, 640, 690,

80

70

100

90

120

110

160

140

200

180

240

220

300

270

1200

60



460, 550, 640, 690

80

70

100

90

120

110

160

140

200

180

240

220

300

270
