Heat Resistant Fabric Conveyor Belt
1. Applications

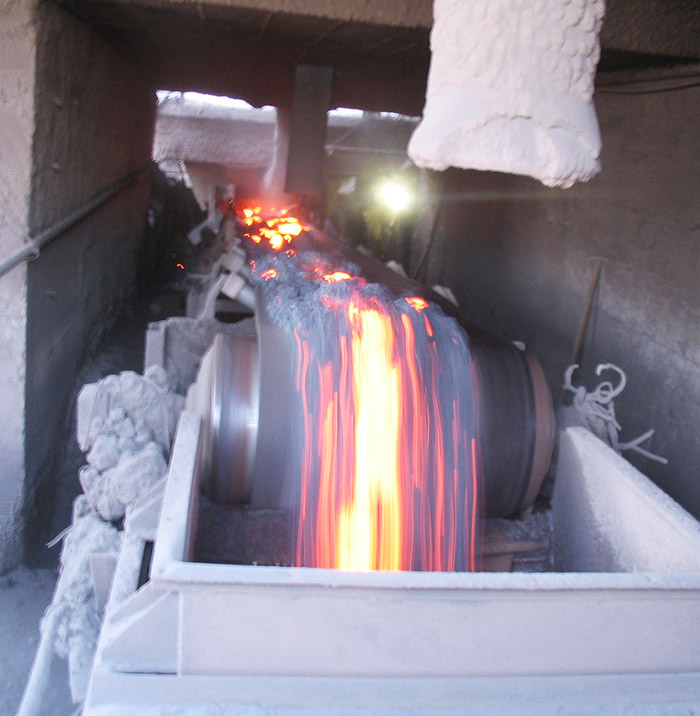

Huayue Heat resistant conveyor belt is suitable for transporting high temperature materials, such as sintering ore, hot coke, cement clinker, hot casting, etc. According to heat resistant grade of different working conditions, we use EPDM or SBR as cover rubber and use high-strength EP or cotton canvas as tension element.
2. Heat resistant grade
Four grades divided according to different testing temperatures:
|
Grade
|
Testing temperature(≤)
|
|
T1
|
100?
|
|
T2
|
125?
|
|
T3
|
150?
|
|
T4
|
175?
|
3. Physical properties of High Temperature Conveyor Belt Supplier
|
Item
|
Grade
|
|
T1
|
T2
|
T3
|
T4
|
|
Changing range allowed
|
|
Hardness
|
Difference between before-aging and after-aging (IRHD)
|
+20
|
+20
|
±20
|
±20
|
|
Maximum value after aging (IRHD)
|
85
|
85
|
85
|
85
|
|
Tensile strength
|
Change rate of property/ %
|
-25
|
-30
|
-40
|
-40
|
|
Minimum value after aging/ MPa
|
12
|
10
|
5
|
5
|
|
Breaking elongation
|
Change rate after aging/ %
|
-50
|
-50
|
-55
|
-55
|
|
Minimum value after aging/ %
|
200
|
200
|
180
|
180
|
4. Full-thickness tensile propertiesa.
a. Full thickness, longitudinal tensile strength after-aging test reduces not lower than 30% of before-aging values.
b. Full thickness, longitudinal elongation at reference force, not more than 4%.
c. Longitudinal tensile strength, not less than the below table. (N/mm)
|
Nominal belt type
|
160
|
200
|
250
|
315
|
400
|
500
|
630
|
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
3150
|
5. Ply adhesion at normal temperature
|
Item
|
Ply to ply
|
Rubber cover to ply
|
|
All samples average value/ (N/mm) ≥
|
4.5
|
3.5
|
|
All samples min peak value/ (N/mm) ≥
|
3.9
|
2.9
|
Wear resistant fabric conveyor belts for the transport of heavy abrasive materials. The quality of our Fire Resistant Conveyor Belt is guaranteed. We are Cotton Conveyor Belt Wholesaler. If you don't understand anything, you can contact us via our website.
