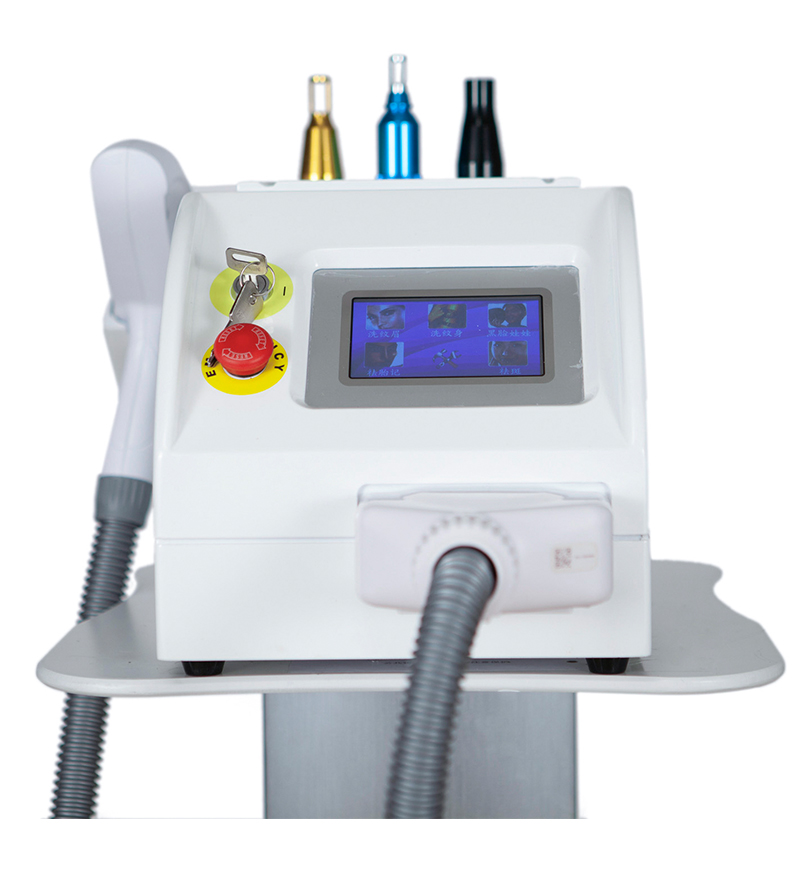

Portable ND YAG Laser Tattoo Removal Machine
Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.
Work Theory
Utilizing the explosive effect of the Nd:YAG Laser, the laser lights permeate through the epidermis into dermis and take effects on pigment mass. The laser energy is absorbed by the pigment. Since the laser pulse width is extremely short in nanosecond and comes with super high energy, the pigment mass will swell quickly break to small pieces, which will be eliminated by body circulation system. Then the pigments become lighter gradually and finally disappear.
Portable Laser Tattoo Removal Machine Indications
1.Melasma/Hyperpigmentation/ lentiginos / Speckle/Tattoo Removal etc.
2.Port wine birthmarks /elangiectasias /Spider angioma /Cherry angioma Spider nevi etc.
3.Carbon peeling treatment
4.Skin rejuvenation /Balance uneven skin tones /Shrink pore
Specification
|
Laser Type
|
ND:Yag Laser
|
|
Wavelength
|
1064nm /532nm
|
|
Output Power
|
100-2000MJ
|
|
Pulse Width
|
8ns
|
|
Frequency
|
1-10Hz
|
|
Spot Diameter
|
3mm
|
|
Cooling
|
Built-in water cooling system, and wind cooling
|
|
Voltage
|
230VAC 50Hz 500W
|
|
Net Weight
|
8KG
|
Advantage of Portable Laser Tattoo Removal Machine
1.Infrared ray aiming: imported infra-red indicator greatly increases the spot accuracy and the efficiency, saving cost accordingly.
2.Multilingual arbitrary languages selective.
3.New high power handpiece, strong output energy.
4.Integrated laser cavity, anti-vibration and anti-swing, no beam deflection.
5.Green Power Supply, Europe CE standard, integrated design, easy maintenance.
6.Q-Switched System.
7.Adopt UK imported lamp with original packaging. Greatly improve the whole life.
8.Adopt special diffuse reflection cavity, high reflection efficiency, high power endurance.
Our Laser Beauty Machine has higher peak power and nanoseconds-level pulse width. As a professional manufacturer of ND-YAG Laser Removal Machine, we provide Two years warranty and life time maintenance. If you are interested in Picosecond Laser Tattoo Removal Machine, please call us at any time.
