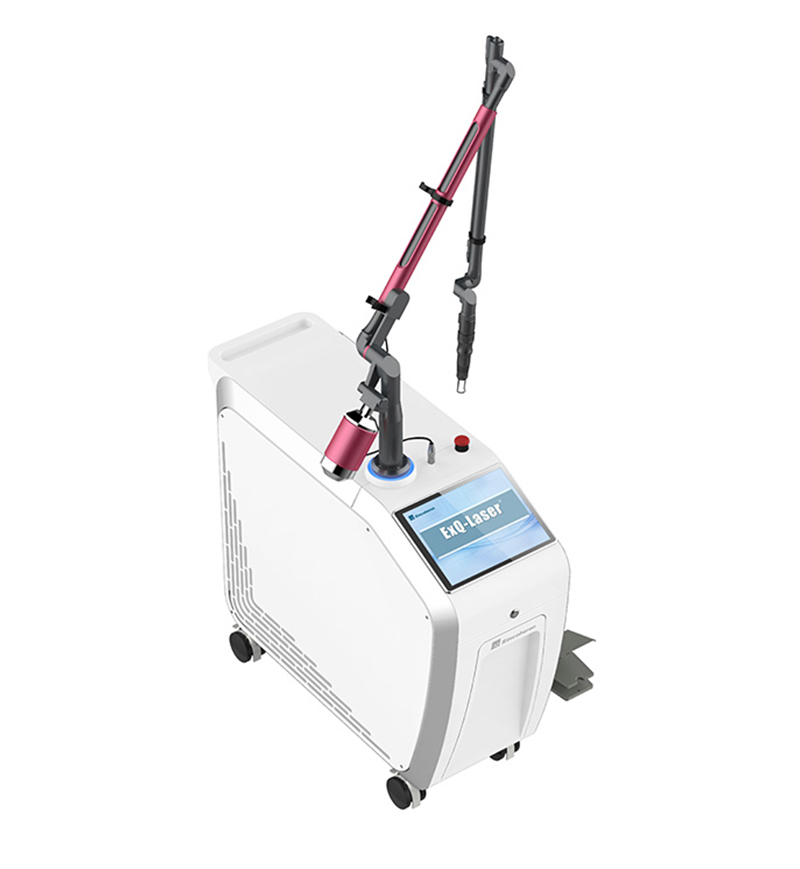

ND YAG Pigment Removal Machine
Q-Switched Nd:YAG has higher peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle formed cells have short hot relaxation time. Q Switched Nd-Yag Laser Machine could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Work Theory
Treatment principle for pigmented dermatosis of Q-Switched Nd:YAG Laser.Therapy system lies in selective photothermolysis with melanin as the chromophore. Q-Switched Nd:YAG has higher peak power and nanoseconds-level pulse width. Melanin in melanophore and cuticle formed cells have short hot relaxation time. It could immediately make small selectively energy absorbed granules (tattoo pigment and melanin) blast without injuring surrounded normal tissues. The blasted pigment granules will be excreted from body through circulatory system.
Indications
1.Melasma/Hyperpigmentation/ lentiginos / Speckle/Tattoo Removal etc.
2.Port wine birthmarks /elangiectasias /Spider angioma /Cherry angioma Spider nevi etc.
3.Carbon peeling treatment
4.Skin rejuvenation /Balance uneven skin tones /Shrink pore
Specification
|
Laser type
|
Single pulse
|
Double pulse
|
Long pulse
|
|
1064nm energy
|
100-600MJ
|
100-1200MJ
|
100-1000MJ
|
|
532nm energy
|
100-300MJ
|
100-600MJ
|
/
|
|
Frequency
|
1-10HZ
|
1-5HZ
|
1-5HZ
|
|
Pulse duration
|
6ns±1ns
|
6ns±1ns
|
200us
|
|
Spot size
|
2-10mm continuously adjustable, error less than ±20%
|
|
|
|
Power supply
|
110-240VAC, 50-60Hz
|
|
|
|
Aiming beam
|
635nm,<5mW
|
|
|
|
Total weight(include articulated arm)
|
<80kg
|
|
|
|
Dimensions (without articulated arm, Width*Length*Height)
|
370 mm *957 mm*992 mm
|
|
|
532nm ND-YAG Pigment Removal Machine Advantage
1.Double-lamp and double YAG rods with greater energy output.
2.Pulse width up to 5ns, higher peak power.
3.Accurate energy and real-time monitoring.
4.Flat-top beam output uniformly distributed spot energy.
5.1064/532nm wavelength automatic switching.
6.Korea imported light guide arm with adjustable spot handles, simultaneous changes in energy density.
7.Automatic water filtration system.
