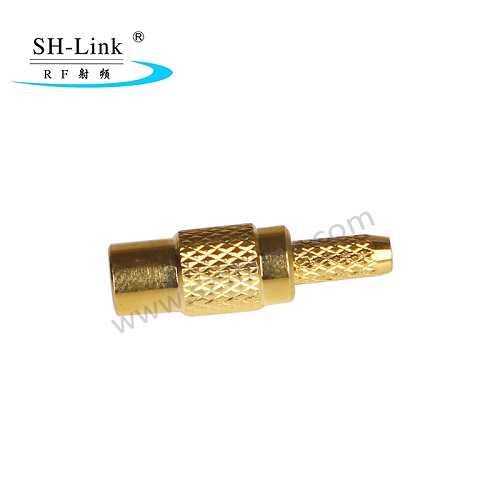

MCX straight Female plug connector for RG316 RG174 RF cable crimp & solder

Shenzhen Sihanming Technology Co.,Ltd.

Category: Electrical Equipment & Supplies

$1.00/1

Short Description

MCX straight Female plug connector for RG316 RG174 RF cable crimp & solder

TYPE MCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small volume?light weight?concise structure?easy to use.MCX Connector are widely used in the Global Position System?Digital Personal Computer Network?all kinds of radio instruments?small-sized electronic equipments and WLAN system.

MAJOR TECHNICAL CHARACTERISTICS

Temperature range	-55—+155??PE Cable -40—+85??
Impedance	50Ω?75Ω
Frequency range	DC-6GHz
Working voltage	250V(50Ω) 170V(75Ω) at sea level
Withstanding voltage	250V(50Ω) 170V(75Ω) at sea level
Contact resistance
Center contact	≤5mΩ
Outer contact	≤2.5mΩ
Insulation resistance	≥1000MΩ
Center conductor retention force	≥0.28N
Insertion loss	0.18dB/1GHz
Engagement force	≤20N
Disengagement force	≥8N


Voltage Standing Wave Ratio
Straight	≤1.20/1GHz
Right angle	≤1.45/1GHz
Durability(mating)	≥500(Cycles)

Buy low price, high quality MCX Straight Female Plug Connector, RF MCX Male Plug Connector. You can choose our products. Our company is the leading factory. Warmly welcome new and old customers to visit and patronize!
