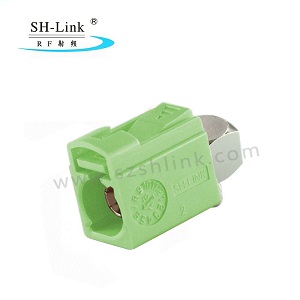

Fakra N Female Right Angle Crimp Solder Connector for RG174 RG316 Cable SHM.900.0003-4.N

FAKRA Connector  is one of the auto parts. They are widely used in GPS, Remote control, car phone, car TV, hi-fi equipment, antennas, etc.FAKRA Straight Female Connector is mate with the same colors or connector and socket, and the structure is to be double-locked and fool-proofing for them.

double locked Female Connector factory Major characteristics:

   Double-locked, fool-proofing assembly with the color and the structure

   The connector is be protected by the cap .

   Easy to assembly

   Many difference between the connector and the cap.

The FAKRA right angle Female Connector technical characteristics:

   Body: Brass, Ni-plated

   Socket: beryllium-copper, Gold-plated

   Pin contact: Brass

   Insulator: PTFE

   Crimp ferrule: brass, Ni-plated

   O-ring: beryllium-copper

   Shell: PA66+30%GF

GPS FAKRA Connector Technical characteristics

   Impedance: 50Ω

   Frequency Range: 4GHz

   Withstanding Voltage: 1000V(RMS)

   Contact resistance:

   Center contact: ≤ 20m

   Outer contact: ≤10m

   Insulation: ≥1,000MΩ

   VSWR: DC - 2GHz<1.2

FAKRA auto connector Mechanical characteristics:

   Assembly: locked

   Durability: ≥ 500 cycles

   Temperature: - 40 - +85°C
