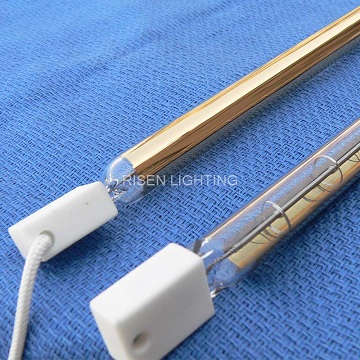

Gold Reflector Halogen Heat Lamp
|
Effective wave length(mm)
|
Length(mm)
|
Power(w)
|
Volt(v)
|
Reflection
|
Diameter(mm)
|
ceramic
|
|
100-300
|
170-400
|
100-1500
|
110-220
|
Gold/Whtie
|
10/12
|
Optional
|
|
200-400
|
270-500
|
500-2000
|
220-240
|
10/12
|
|
400-1200
|
470-1300
|
1000-3000
|
220-240
|
8-14
|
|
800-1700
|
970-1800
|
1500-4500
|
380/400/415
|
8-15
|
|
1200-2000
|
1270-2100
|
1500-2500
|
220-240
|
8-15
|
Established in 2009, Nanjing Risen Electronic Light Tech Co., Ltd. is a leading manufacturer of infrared heating tubes, carbon infrared heating lamps, reflector heating lamps, Gold plating infrared heating lamps, Medium wave infrared heater, ruby infrared emitters, and all accessories. Furthermore, we have our own infrared heating development team, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure excellent performance.
When using infrared Emitters with reflectors, The heating process are running more steady and more efficiently. The Reflectors supply directional IR radiation. The reflective coating consists of a high-purity quartz, ceramic material and some of fine gold, which is coated with The quartz tubes. Therefore, the emitter has better performance in small working space. The quartz heaters is good resistant to heat, acid and corrode. As a result, The emitter with this refelctive coating can be used many extrem conditions.
Halogen Infrared Lamp belongs to the thermal radiation light source, the lamp installation is convenient, simple accessories, AC/DC circuit can be used. Mainly used for industrial heating or drying, such as: circuit board docking, a variety of baking complete, film, heating and so on. It is Clean, hygienic and temperature-controlled when used, the IR lamps can work in the atmosphere, or in a vacuum. Far infrared heating lamp, can be used horizontal or vertical, can also be heated to special equipment, and can be upright to produce different color temperature near, far infrared, in the spectral aspect, can use different shapes of tungsten as a heating source. And according to customer requirements, respectively, we can provide twin tube heater or single tube heater with gold reflector.
Technical Parameters:
- VOLT: 120- 480v
- WATT: 200-6000W
- HZ: 50-60 HZ
- Electricity saving ratio: 30%
- Infrared normal direction radiant ratio: over 94%
- Electric heat transformation ratio: over 98%
- Highest heat temperature endured: 1100C
- Surface temperature: 500-900C
- Continuous servicing hour: over 5, 000H
Typical applications fields
In extrem conditions
Solar cells coating
Coating under vacuum situations
Drying paint of Car
For Screen printing such as:Screen Printing Halogen Heat Lamp
