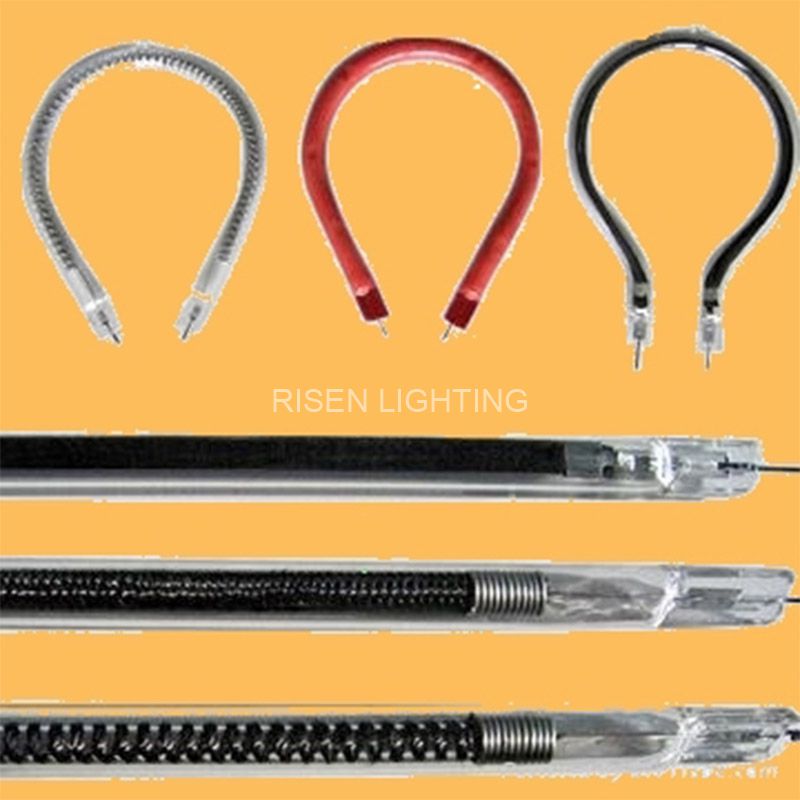

Carbon Stick Heat Lamp
Carbon stick heat lamp has excellent heating efficiency and better work life.
The carbon infrared heat lamp has a heating length starting from 50mm to 3000mm and is suitable for being a separate heating process. These new emitters are particularly suitable for curing small parts, drying painting, plastics welding, or for The areas where local heating is required. According to the customer's requirement, we can customize the carbon infrared heater as twin tube or single tube with gold reflective coating.
High Quality Carbon Infrared Heater can be used in Horizontal and vertical, with Energy-saving heating process and Fast response time. Wavelength: up to 2.2 μm.
Established in 2009, Nanjing Risen Electronic Light Tech Co., Ltd. is a leading manufacturer of infrared heating tubes, carbon infrared heating lamps, reflector heating lamps, Gold plating infrared heating lamps, Medium wave infrared heater, ruby infrared emitters, and all accessories. Furthermore, we have our own infrared heating development team, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure excellent performance.
Technical data
|
|
Carbon infrared twin tube heater
|
Carbon infrared single tube heater
|
|
Power
|
60 W/cm
|
30 W/cm
|
|
Max. heated length
|
3000 mm
|
2000 mm
|
|
Diameter
|
11x23 mm / 15x33 mm
|
10 mm - 20 mm
|
|
Filament temperature
|
1200°C
|
1200°C
|
|
Wavelength
|
2 µm
|
2 µm
|
|
Max. power density
|
110 kW/m²
|
85 kW/m²
|
|
Response time
|
1 - 2 s
|
1 - 2 s
|
Advantages
1. Directional heating radiation,
2. Fast response 1-2 seconds response time.
3. Good quality Thicker quartz tube with superior thermal stability
4. Excellent heating efficiency.
5. Ceramic end cap. one side connection or double side connection.
Application Area:
- Health care & heating apparatus.such as:Health care Carbon Stick Heat Lamp
- Drying equipment, painting drying.
- Cooking device.
- Medical equipment.
- Fry & baking equipment.
- Brewage & fermentation installation.
- Sterilizing device.
