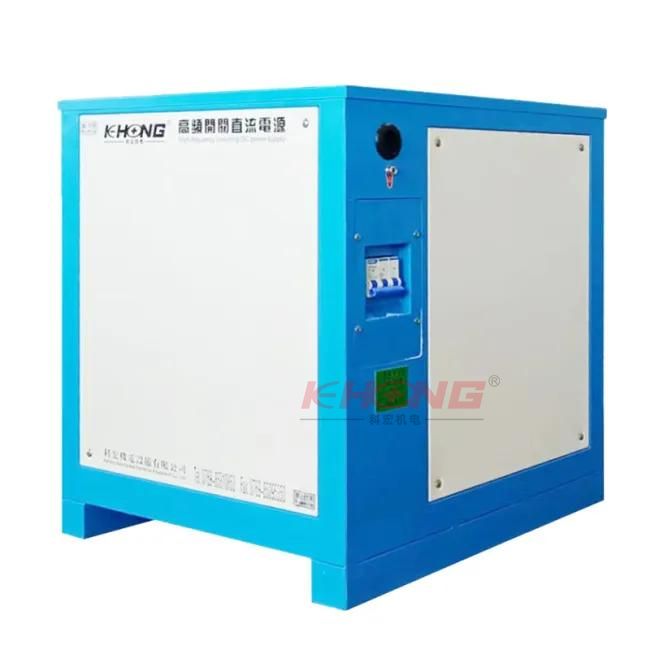

The 2000A15V Dc power supply for electroplating rectifier from Kehong is a state-of-the-art power solution designed to provide reliable and efficient high-frequency direct current power. With its advanced technology, robust construction, and user-friendly features, it delivers consistent and precise power output for a wide range of applications.
Key Features:
1. Flexible Product Specifications: The rectifier offers a specification of 12V-2000A with various options available for selection. It features an adjustable DC output voltage of 0-15V and an adjustable output current of 0-2000A, both displayed digitally.
2. Versatile Input Voltage: The standard input voltage is 380V3P/50Hz, with customization options available for 220V3P, 415V3P/50~60Hz. It operates within an error value of ±10%, with a rated power ranging from 0 to 24KW.
3. Dual Output Mode: The rectifier features steady pressure and steady flow conversion modes. It employs water cooling as the primary cooling mode, with air cooling available as an optional feature.
4. High Output Frequency: The rectifier provides an output frequency of 20~35KHz, with a ripple coefficient of approximately 3.9%.
5. Comprehensive Protection Technology: The device incorporates advanced protection features, including automatic protection at 70?, over-current protection, over-voltage protection, and phase-lack protection.
6. Remote Control Operation: The rectifier can be operated using a remote control box, allowing for easy control of operating voltage, current, or timing. The included remote wire has a length of 5 meters, with extensions available upon request.
7. High-Quality Components: The rectifier utilizes high-quality components such as a German Infineon driver chip, Infineon IGBT, China SL Nitrogen, and a rectifier bridge.
8. Superior Conductor Material: The conductor is made of T2 Copper Sheet and Braided Belt, while the transformer features a nanocrystalline magnetic core and copper enameled wire, exceeding national standards for conductor cross-sections.
9. Self-Produced Control Circuit: The rectifier's control circuit includes a self-produced main control circuit board and drive circuit board. The split structure design allows for easy connectivity using computer wires. This design is the result of over 10 years of technological expertise.
Applications:
The 2000A High-Frequency Rectifier is well-suited for various industries and applications that require reliable and high-frequency DC power.
In summary, the 2000A High-Frequency Rectifier by Kehong is an advanced power solution designed for efficiency and reliability. Its versatile features and high-quality components make it an essential tool for industries requiring dependable DC power output.
