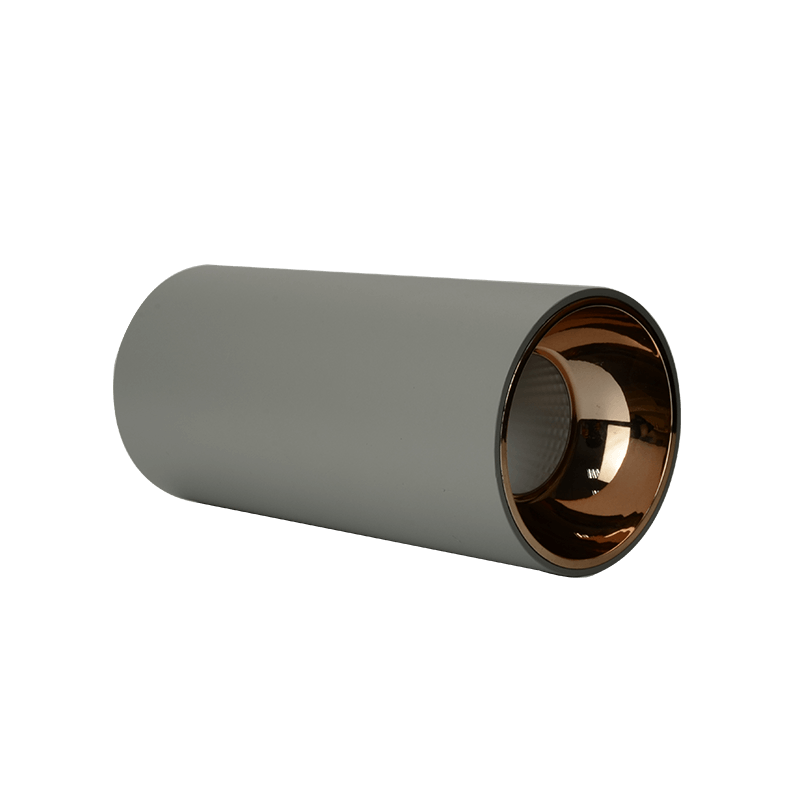

LED Surface Mounted Downlight SM-A cabinet downlight custom led interior downlight
Model: JST-SM-A
Wattage: 10W-30W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ?90
Finish Color: White/Black/Customized
Ring Color: White/Black/Gold/Silver
Beam Angle: 15°/30°/45°
Diameter: 50mm-110mm
Installation: Surface mounted/Suspend
living room downlights Description
SM-A Series originally researched and developed by JST, high-end spotlight with interior driver. 55mm-110mm diameter face cover, integrated molded lamp housing of CNC aluminum, use international top COB CITIZEN chip, PC reflector, mirror-finish anodized, reflective rate>95?, with first-rate lighting control effect, various beam angle 15°24° 36° for option, stable specifications, glare-free, good heat sink, brilliant quality, more than 50,000 hours life span.
fire rated downlights Advantages
· High Ra?90, Low SDCM?3
· High efficiency, high illuminance
· Glare-free design, perfect light spot and accurate beam angle, make surroundings of comfortable illumination.
· Non-flicker driver for superior surrounding lighting requirement
· Integrated molded light housing with convective holes for better heat dissipation,interior driver, low-temperature operation guaranteed.
· Refined components and design, guarantee a long life span of over 50,000 hours
bathroom downlights Specification
|
Model
|
Power
|
CRI
|
CCT
|
PF
|
Current
|
Input Voltage
|
Beam Angle
|
Dimension
|
|
JST-SM-A
|
10W
|
>80/90
|
2700K-5000K
|
>0.65
|
0.25A
|
AC220-240V
|
15°/30°/45°
|
D50*H200mm
|
|
JST-SM-A
|
15W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.35A
|
AC220-240V
|
15°/30°/45°
|
D70*H200mm
|
|
JST-SM-A
|
20W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.50A
|
AC220-240V
|
15°/30°/45°
|
D90*H200mm
|
|
JST-SM-A
|
30W
|
>80/90
|
2700K-5000K
|
>0.90
|
0.75A
|
AC220-240V
|
15°/30°/45°
|
D110*H200mm
|
adjustable led downlights Application
Residentail, Hotel, Restaurant, Shop, Subway, Bar, Disco Hall, KTVBank, Meeting Room, Displaying Hall, Stage and Etc
