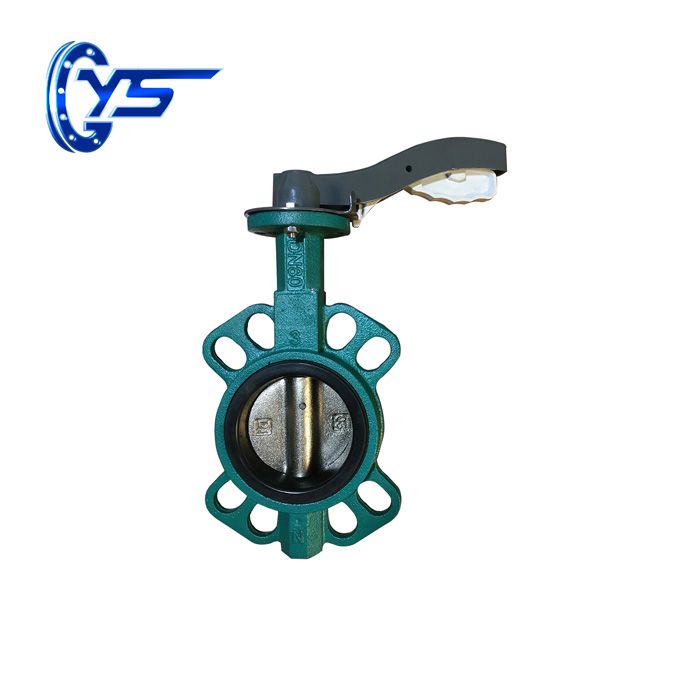

Oil And Gas Butterfly Valve Wafer type Butterfly Valve manufacturer

Hebei Yaosheng IM & EX Trading CO.,Ltd

Contact Person: Ms. Hao lijiao
Main Product: valve? flange ?pipe fitting
Business Nature: Manufacturer
Year Established: 2018
Current Export Market: Soviet Union, Central Asia, Southeast Asia, Middle East, etc. ...Global
Telephone: +863128695888
Email: hbysindustry@gmail.com
Address: Xushui Industrial Park
Country:
City: Baoding
web: https://www.hbysindustry.com/

Medium temperature: ≤80 ?
Medium: oil, natural gas
Size: DN50-600
Pressure: 1.0-1.6mpa
Body Material: Ductile Iron
Connection method: Wafer type

Usage: The valve is mainly used to cut off the fluid it also can be designed to have the function of adjusting

or cutting off the fluid.

Oil And Gas Butterfly Valve Main parts and materials
Parts name	Material
Valve body	Ductile iron
Butterfly	Ductile iron/SS
Valve shaft	Carbon steel
Sealing ring	NBR

Oil And Gas Butterfly Valve Function and specification
Type	Nominal pressure ?mpa?	Testing pressure?mpa?		Suitable temperature	Suitable medium
		Strength (Water)	Enclose (Water)
D71X-10	1.0	1.50	1.10	≤80?	oil,natural gas
D371X-10
D71X-16	1.6	2.40	1.80	≤80?	oil,natural gas
D371X-16

Oil And Gas Butterfly Valve Outline and connecting measurement
Type	Nominal DN(mm?	Measurement?mm?
Type	Nominal DN(mm?	φ	H	L	Z-φd
D71X-10/16	50	120	161	42	4-φ23
	65	136.2	175	44.7	4-φ26.5
	80	160	181	45.2	8-φ18
	100	185	200	52.1	4-φ24.5
	125	215	213	54.4	4-φ23
	150	238	226	55.8	4-φ25
	200	295	260	60.6	4-φ25
