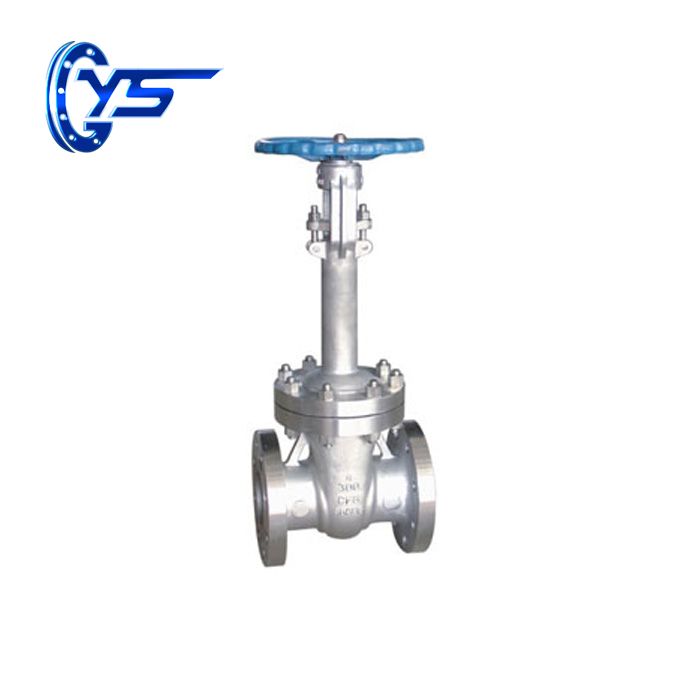

DN 50-1000mm ANSI Low Temperature steel Gate Valve Low Temperature steel Gate Valve price LOW TEMPERATURE STEEL SERIES
Medium: propylene, propane, methanol, ethane, gas, liquid ammonia;
Operating temperature: LCB: -46 ?; LC1: -60 ?; LC2: -73 ?
Operation mode: manual, electric
Caliber: 1 "-16"
Pressure: 150-600LB
Body material: low temperature steel
Connection method: flange
LOW TEMPERATURE STEEL SERIES Details
|
ANSI Low Temperature steel Gate Valve Material of main parts
|
|
Part Name
|
material
|
|
Body / bonnet
|
LCB, LC1, LC2
|
|
Valve stem
|
F431, F304, F304L
|
|
Valve seat
|
STL
|
|
ANSI Low Temperature steel Gate Valve Performance Specification
|
|
|
model
|
Nominal pressure
|
Test pressure (mpa)
|
Applicable medium
|
|
|
Strength (water)
|
Sealed (water)
|
|
|
DZ41Y-150 LB
|
150 LB
|
2.40
|
1.76
|
Propylene, propane, methanol, ethane, gas, liquid ammonia
|
|
|
DZ41Y-300 LB
|
300 LB
|
3.75
|
2.75
|
|
|
DZ41Y-600 LB
|
600 LB
|
6.00
|
4.40
|
|
|
Low Temperature steel Gate Valve dimensions and connection dimensions
|
|
model
|
Nominal diameter
(mm)
|
Size (mm)
|
|
|
|
|
|
|
L
|
D
|
D1
|
D2
|
b
|
Zφd
|
|
DZ41Y-150LB
|
2"
|
178
|
152
|
120.5
|
92
|
16
|
4 * φ19
|
|
2 1/2 "
|
190
|
178
|
139.7
|
105
|
18
|
4 * φ19
|
|
3 "
|
203
|
190
|
152.5
|
127
|
19
|
4 * φ19
|
|
4 "
|
229
|
229
|
190.5
|
157
|
23.9
|
8 * φ19
|
|
5 "
|
254
|
254
|
215.9
|
186
|
25.4
|
8 * φ22
|
|
6 "
|
267
|
279
|
241.5
|
216
|
28.5
|
8 * φ22
|
|
8"
|
292
|
343
|
298.5
|
270
|
30.2
|
8 * φ22
|
|
10 "
|
330
|
406
|
362
|
324
|
31.2
|
12 * φ25
|
We can design and produce various standard Valve. Standards such as GB, JB, US API, ANSI, British BS, German DIN, Japanese JIS, GOST, GOST series Valve are our main products.
