DN 15-200mm Flanged Globe Valve globe valve manufacturer GOST SERIES

Hebei Yaosheng IM & EX Trading CO.,Ltd

Category: Mechanical Parts & Fabrication Services

$1.00/--

Short Description

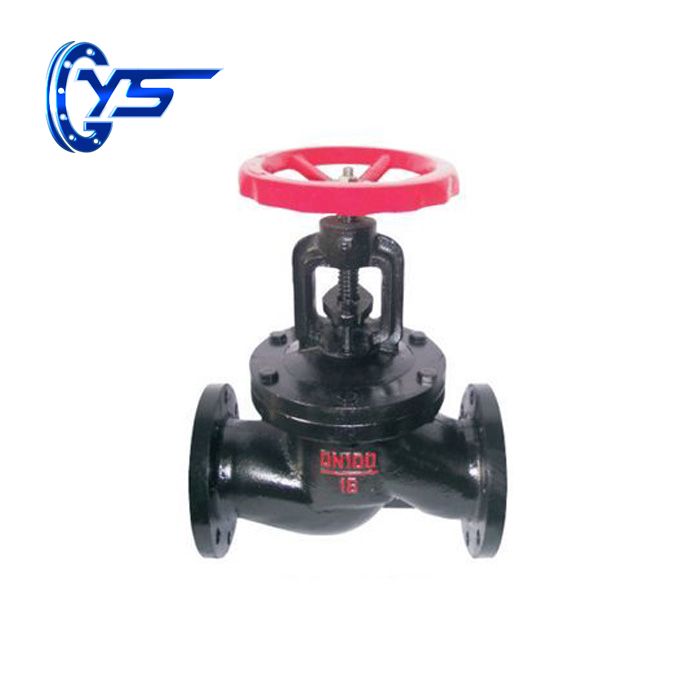

DN 15-200mm Flanged Globe Valve globe valve manufacturer GOST SERIES

Medium temperature: ≤200 ?
Operation method: manual
Medium: water, steam
Caliber: DN15-300
Pressure: 1.6mpa
Body material: gray cast iron
Connection method: flange

globe valve Details

Flanged Globe Valve Main parts and materials
Parts name					Material
Valve body Bonnet					Grey iron
Disc					Grey iron
Stem					Carbon steel
Yoke nut					Copper (Iron)
Flanged Globe Valve Function and specification
Type	Nominal pressure ?mpa?	Testing pressure?mpa?		Suitable temperature		Suitable medium
		Strength (Water)	Enclose (Water)
J41T-16	1.6	2.40	1.80	≤200?		Water?Vapour

Flanged Globe Valve Outline and connecting measurement
Type	Nominal DN(mm?	Measurement?mm?
Type	Nominal DN(mm?	L	D	D1	D2	b-f	z-φd	H1
J41T-16	15	130	95	65	45	14-2	4*φ14	200
	20	150	105	75	55	16-2	4*φ14	200
	25	160	115	85	65	16-2	4*φ14	220
	32	180	135	100	78	18-2	4*φ18	245
	40	200	145	110	85	18-3	4*φ18	260
	50	230	160	125	100	20-3	4*φ18	285
	65	290	180	145	120	20-3	4*φ18	300
	80	310	195	160	135	22-3	8*φ18	350
	100	350	215	180	155	24-3	8*φ18	365
	125	400	245	210	185	26-3	8*φ18	430
	150	480	280	240	210	28-3	8*φ23	450
	200	600	335	295	265	30-3	12*φ23	510
