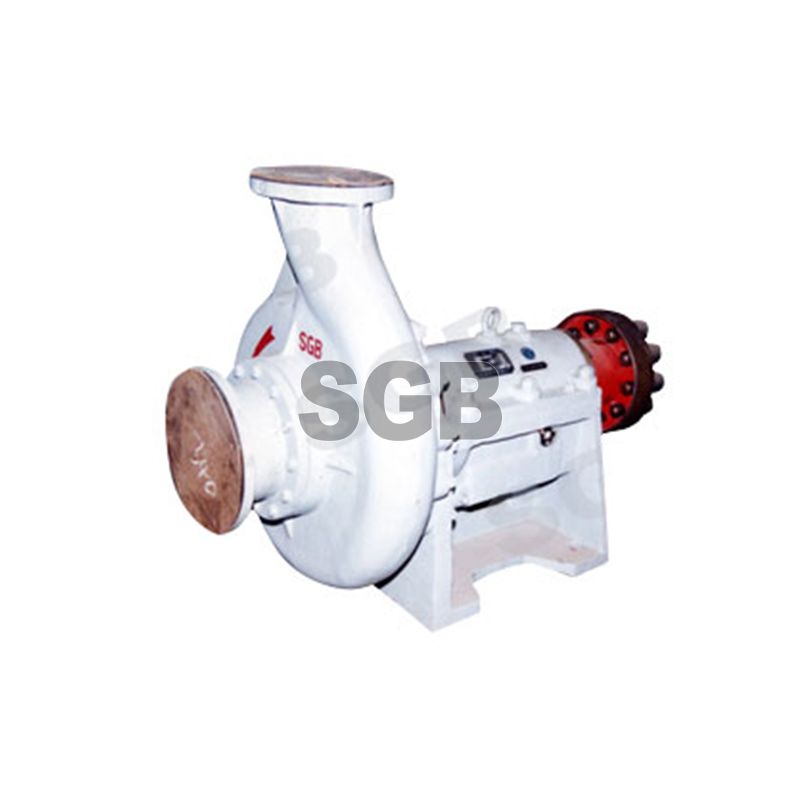

CH Series Ash-Flushing Pump
Product Description
- Single case, horizontal version pump
- Wet parts such as casing, impeller, liner plate in anti-abrasion high chrome cast iron alloy.
- Hydraulic optimization design, high-efficient, energy-saving and stable operation
Technical Specifications
Performance and main Technical Datas of CH Series Pumps
Type
Allowable max.power of ass.motor(kW)
Clear water performance
Particle max.
Size handled occasionally
(mm)
Pump weight
(kg)
Q
Capacity
(m3/h)
H
Head
(m)
n
Speed
(r/min)
Max.eff.
(%)
(NPSH)r
150CH-F50
250
156-719
18.5-96.2
700-1480
76.0
2.5
/
1150
