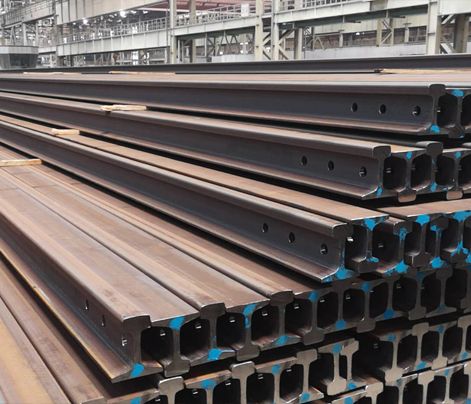

UIC Standard Steel Rail UIC 60 rail
60E1 UIC860 standard steel rail/UIC 60/UIC54 railway steel rail
Length: 12 to 25 meters;
Production standard: UIC860;
Delivery inspection standard: EN13674 for qualifying tests and acceptance tests;
Material: 900A/R1100;
Hardness:R200, R220, R260.
PRODUCT PARAMETERS
As we are known, UIC stands for International Union of Railways. Since 1950, the flat-bottomed steel rails have been widely used in various countries. There are many used types all over the world. The differences between them lie in the detailed geometrical dimensions. The UIC standards were initially adopted in countries such as Europe and North Africa. Currently, they are generally accepted by the international community.
Hebei yongyang steel sales Co.Ltd, established in 2007, is the wholly-owned subsidiary of Hebei Yongyang Special-steel Group Co.ltd, our products mainly include: 8kg-30kg Light rail, 38kg-75kg heavy rail, QU70-QU120 Crane rail, 9-12# Mining I-Beam, 25-36(U)Mining support steel, rails accessories and all kinds of round bar, flat bars.
|
Size
|
Dimension(mm)
|
Weight(kg/m)
|
Material
|
Length (m)
|
|
Head Width
|
Bottom Width
|
Height
|
Thickness
|
|
UIC54
|
70
|
140
|
159
|
16
|
54.77
|
900A/1100
|
12-25
|
|
UIC60
|
74.3
|
150
|
172
|
16.5
|
60.21
|
|
60 E1
|
72
|
150
|
172
|
16.5
|
60.21
|
R200 R220 R260
|
12-25
|
|
60 E2
|
72
|
150
|
172
|
16.5
|
60.03
|
12-25
|
– Standard of UIC 860 V: 1996 – prescribed four types pearlite steel rails in the range of tensile strength from 700 to 1300 MPa.
– Standard EN 13674 – 2003, provides seven types pearlite steel hardness in the range 200 to 390 HBV, types steel in accordance with EN 13674, based on the values of hardness (R 200, R 220, R 260, R 260 Mn, 320 Cr, 350 HT, 350 LHT).
AS the leading manufacturer of steel rails in China, Our company can design and develop various products of steel rails using high quality raw materials by implementing latest technology and advanced techniques, which meets the international UIC standards.
