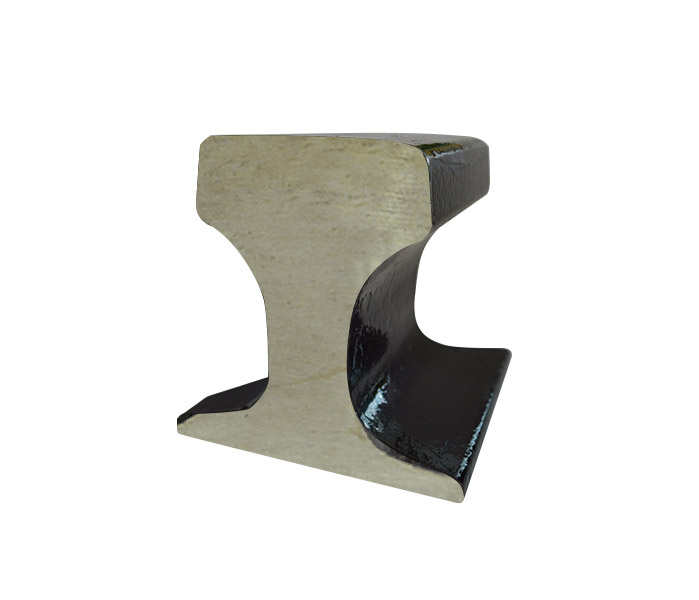

QU100 Crane Rail
12 meters Crane Rail, 12m Crane Rail supply
Material? U71Mn
Weight?88.96Kg/m
Length?12m
Standard?YB/T5055-2014
Hebei yongyang steel sales Co.Ltd, established in 2007, is the wholly-owned subsidiary of Hebei Yongyang Special-steel Group Co.ltd, our products mainly include: 8kg-30kg Light rail, 38kg-75kg heavy rail, QU70-QU120 Crane rail, 9-12# Mining I-Beam, 25-36(U)Mining support steel, rails accessories and all kinds of round bar, flat bars.
PRODUCT PARAMETERS
Parameters
type
weight (kg/m)
material
length (m)
QU100
88.96
U71Mn
12
rail height (mm)
bottom width (mm)
head width (mm)
web thickness (mm)
150
100?108?
38
Crane Rail
Size
Rail Height
Bottom Width
Head Width
Web Thickness
Weightkg/m
QU70
120
70?76.5?
28
52.80
QU80
130
80?87?
32
63.69
QU120
170
120?129?
44
118.10
Application:
Crane rails are designed for carrying heavy loads and are used in the laying of crane track for port building.Compared with the railway's heavy rail, crane rail height is low and head width thick waist size is bigger.
