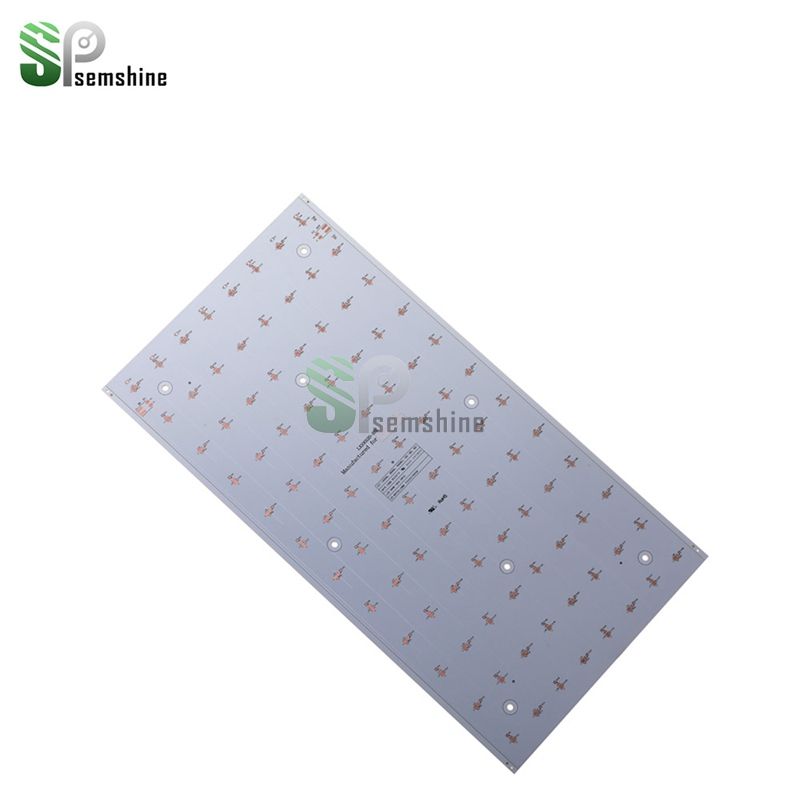

Ultra high thermal conductivity aluminum-PCB
PCB description:
Model Number: aliuminum pcb
aluminum pcb manufacturer:Shenzhen Semshine Tech Co.,Ltd
Place of Origin: Shenzhen, China
Brand Name: SEMSHINE
Base Material: Aluminum high TG
Layers: 1L
Copper Thickness: 1oz
Board Thickness: 0.3mm
Min. Hole Size: 0.08mm
Min. Line Width: 2 Mil
Min. Line Spacing: 0.1um(3 Mil)
Surface Finishing: ENIG
Color: White Solder mask and Black silkscreen
https://www.shinepcba.com/aluminum-pcb.html
Item Aluminum substrate specifications:
|
Item
|
Unit
|
Specification
|
Test condition
|
|
Insulation thickness
|
pm
|
Max Min
|
150
70
|
—
|
|
Solder resistance (288*C)
|
Sec.
|
Min
|
600
|
IPC-TM-650 3.10.1.12
|
|
Thermal shock
|
288°C*107cycle
|
Min
|
6 Times
|
IPC-TM-650 2.4.13.1
|
|
Peel strength (Normal status)
|
Ib/in
|
Min
|
7.5
|
IPC-TM-650 2.4.8
|
|
Breakdown Voltage
|
V/mil
|
|
750
|
IPC-TM-650 2.5.6
|
|
Volume resistivity (Normal status >E+14)
|
Q • cm
|
|
1013
|
IPC-TM-650 2.5.17.1
|
|
Surface resistivity (Normal status >E+12)
|
Q
|
?
|
IO”
|
IPC-TM-650 2.5.17.1
|
|
Dielectric constant
|
|
|
|
IPC-TM-650
|
|
1 MHz Normal status
|
—
|
|
8.0
|
2.5.5.3
2.5.5.5
|
|
1 GHz Normal status
|
|
|
7.6
|
2.5.5.S
|
|
Dissipation Factor
|
|
|
|
IPC-TM-650
|
|
1 MHz Normal status
|
|
|
0.005
|
2.5.5.3
2.5.5.5
|
|
1 GHz Normal status
|
|
|
0.003
|
2.5.5.9
|
|
Water absorption
|
%
|
|
0.2
|
IPC-TM-650 2.6.2.1
|
|
Thermal conductivity
|
|
|
|
|
|
(measured on insulation layer only)
|
W/mcC
|
|
9.0
|
ASTM-E1461
|
|
Flammability
|
94V-0
|
|
Pass
|
IPC-TM-650 2.3.9
|
|
Tg
|
,c
|
|
160
|
IPC-TM-650 2.4.24
|
|
Td
|
,c
|
|
350
|
TBD (5wt% loss)
|
Application Areas for Aluminum PCB Fabrication:
Auminum printed circuit sheets are among the most broadly and ordinarily utilized circuit sheets? The application areas for aluminum PCB board includes:
1. Surgical Lighting Tools
2. High-power Scanners
3. Tail Light Assemblies
4. Power Transmission Systems
5. Automotive Dashboards
6. Power Converters
7. Interior Lighting
8. Medical Operating Theatre Lighting
9. Landscape Lighting
Our Services
1. Quick response
2. Reasonable price based on good quality
3. Provide one-stop service (components, OEM)
4. Abundant inventory & Habitual material preparation
Quality control:
1. Supplier Evalustion and Ranking
2. Contact Appraisal
3. Pre-production Arrangement
4. Raw material Inspection
5. Control in Manufacturing
6. Test of finished products
