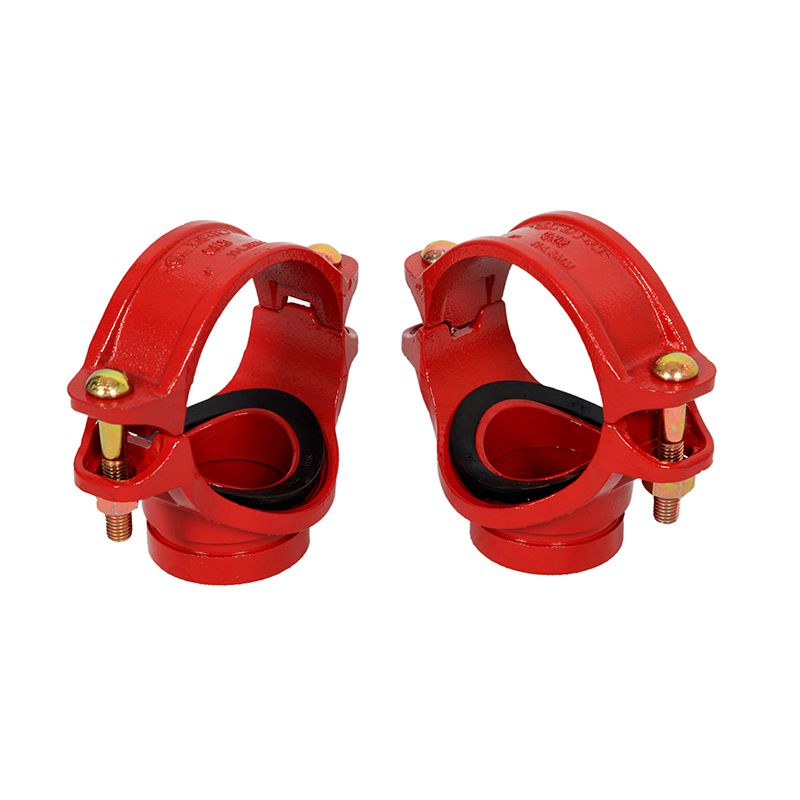

The Threaded Mechanical Tee is a versatile pipe fitting designed to connect branch lines to main pipelines without the need for welding. Featuring a threaded outlet, this fitting simplifies installations in commercial and industrial piping systems, making it an essential component for water distribution, fire protection, HVAC, and more.

· Certificate: FM/UL/3C/CE,etc.

· Standard: ANSI/UL 213C

· Housing Material: Ductile iron conforming to ASTM A-536, Grade 65-45-12.

· Branch: Female thread, NPT / BSPT

· Bolt & Nut: Carbon steel

· Gasket: EPDM, nitrile, silicone rubber, etc.

· Rated pressure: 300~500PSI

· Surface: Hot dip galvanized/electrophoretic/epoxy powder painting

· Color: Variable colors for choice

Branch outlet fitting is another way of piping innovation, which is the use of bolted connections branch pipe fittings. No need to weld directly from the supervisor on the branch pipe. The method used is in the need to take over the main branch pipe processing a round hole, fitted with branch outlet housing. The opening must be secured on the centerline of the pipe and be mechanically perforated by a dedicated opening.

Upgrade your piping system with the reliable and cost-effective Custom mechanical tees today! Explore our wide selection of sizes and materials to find the perfect fit for your project. Contact us now for competitive pricing, expert support, and fast delivery.
