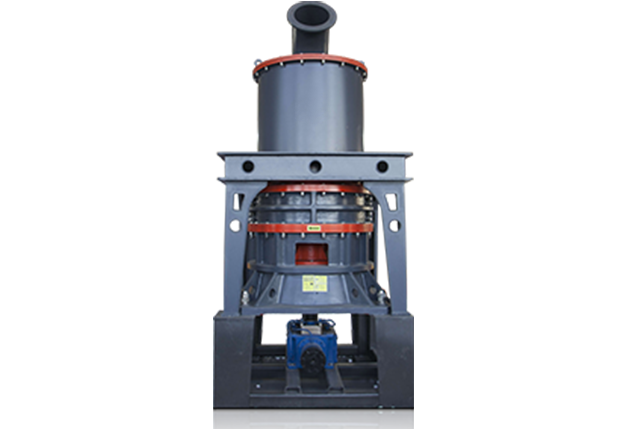

Ring Micro-grinding custom Industrial Beneficiation Equipment industrial powder making equipment manufacturer
HGM Series Stone Powder processing equipment is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica , magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.
Quick Details of custom Stone Powder processing equipment:
Condition: New
Type: Grinding mill machine
Capacity(t/h): 0.4-12, 0.5-4.5/0.6-6.5/0.7-7/1-8.5/1.5-12
Place of Origin: Shanghai China (Mainland)
Brand Name: Dingbo
Model Number: HGM
Motor Power(mm): 145-165
Ring Diameter(layer): 800/930/1035/1300
Ring Number(layer): 3/3-4/3/4
Rollor Number(piece): 21/24-32/34-36/40-44
Main Shaft Speed (r.p.m): 230-240/200-220/180-200/135-155
Input Size(mm): Equal or Less than 20
Inished Size(um/mesh): 5-47(325-2500)
Main Components of Stone Powder processing equipment :
HGM series Stone Powder processing equipment mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so On.
Applications:
There are five types of Shanghai Dingbo Stone Powder processing equipment, they are HGM80, HGM90, HGM100, HGM100A and HGM125. The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron. The capacity (ton/hour) ranges from 0.4 T/H to 12T/H.
Features of Stone Powder processing equipment:
High Efficiency
Under the same finished final size and the same motor power, the capacity of Stone Powder processing equipment is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.
Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Lifetime can reach 2-5 years for grinding calcite carbonate.
High safety and reliability
Asn rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
High fineness, flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.
Environment-friendly
The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
Advanced intelligent speed control device
Convenient adjusting, more uniform particle size.
Technical data of Stone Powder processing equipment:
|
Model
|
Ring Numbers(mm)
|
Ring Numbers (pcs)
|
Roller Numbers(pcs)
|
Main shaft speed(r.p.min)
|
Feeding
Size(mm)
|
Output Size(um)
|
Capacity(t/h)
|
Overall
Dimension(m)
|
Equipment capacity(kw)
|
|
HGM80
|
800
|
3
|
21
|
230-240
|
≤20
|
5-47(325~2500)
|
0.5-4.5
|
13.9X4X6.2
|
145-165
|
|
HGM90
|
930
|
3-4
|
24-32
|
200-220
|
0.6-6.5
|
14.7X4.8X7.2
|
185-204
|
|
HGM100
|
1035
|
3
|
27
|
180-200
|
0.7-7
|
18x4.6x8.6
|
263
|
|
HGM100A
|
4
|
34-36
|
1-8.5
|
263-290
|
|
HGM125
|
1300
|
4
|
40-44
|
135-155
|
1.5-12
|
14x9x10.25
|
380-430
|
[production time]: September 2019
[Location]: South Africa
[Material]: Quartz
[Yield]: 250t / h
[Device configuration]: jaw crusher, vibrating screen, vibrating feeder, cone crusher, three-ring micro-grinding
