Reverse Osmosis Controller for Water Purification System High Quality Single Pass Single channel
PRODUCT DESCRIPTION
Single Pass Single channel Reverse Osmosis Controller includes the high/low stress flushing options for controlling the running procedure. 0.1/ 1.0/ 10.0 (cm-1 )3 conductance cells are added for conductivity dimensions to make the measurement array (reduced conductance (0.1 ~ 200) μS/ cm and also high conductance (5 ~ 9999) μS/ cm) to be significantly extended. It is specifically appropriate for raw water with much better water or bitter as well as brackish water in high conductivity location, and all this does not call for complex user interface menu settings, only can be obtained by hand in the rear incurable circuitry. Lan Ze Reverse Osmosis FEATURE Integrated reverse osmosis control and conductivity measurement; Flow diagram control panel, clearly show the system process circulation running condition; Measurement parameters and procedure specifications can be established, clients can flexibly
Single Pass Reverse Osmosis Controller wholesale TECHNICAL PARAMETER

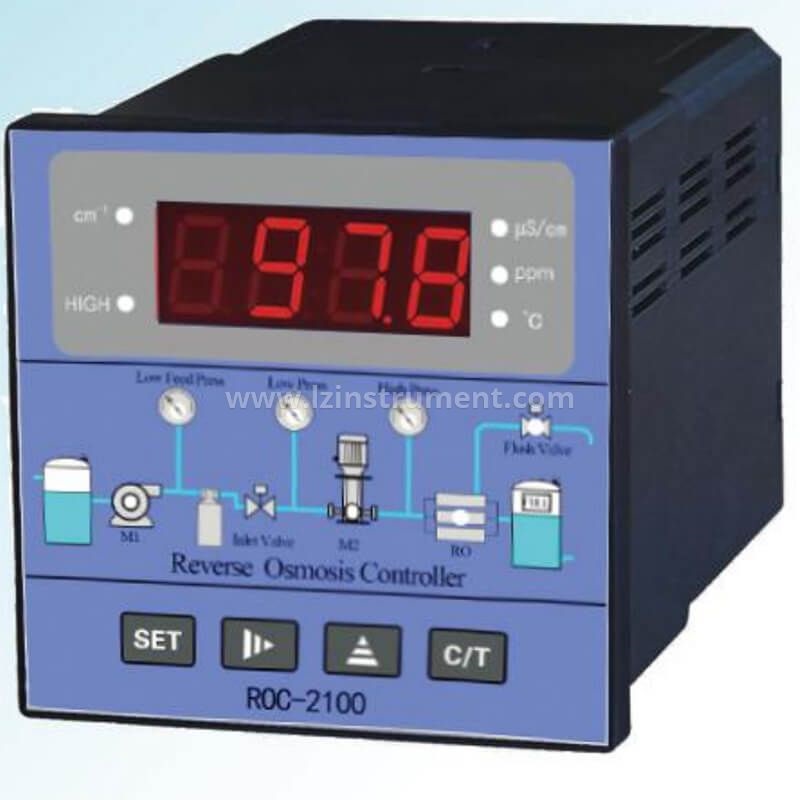

ROC-2100 Single Pass RO Control Systems
Measurement Range: Conductivity: 0-20/200/2000 µs; Support with 1.0cm·1 Constant Cell Sensor
Acquire the Signal: I.Raw Water Low Pressure; 2.Pramary boosterpump inlet Low-pressure; 3.Pramary booster pump outlet High-pressure; 4.Pramary produce tank high level; 5.Preprocessing Signal.
Control Output: I.Inlet Valve; 2. Flush Valve; 3.Drain Valve; 4.Raw Water Pump; 5.Booster Pump
Display method: Digital display: conductivity value/ temperature value; display RO process flow chart
Control Power: AC220V?10% 50/60Hz AC110V?10% 50/60Hz
Dimension:: (96*96*130) mm
Installation Size: (92*92) mm
Installation method: Panel embedded installation
More information please clock here.
