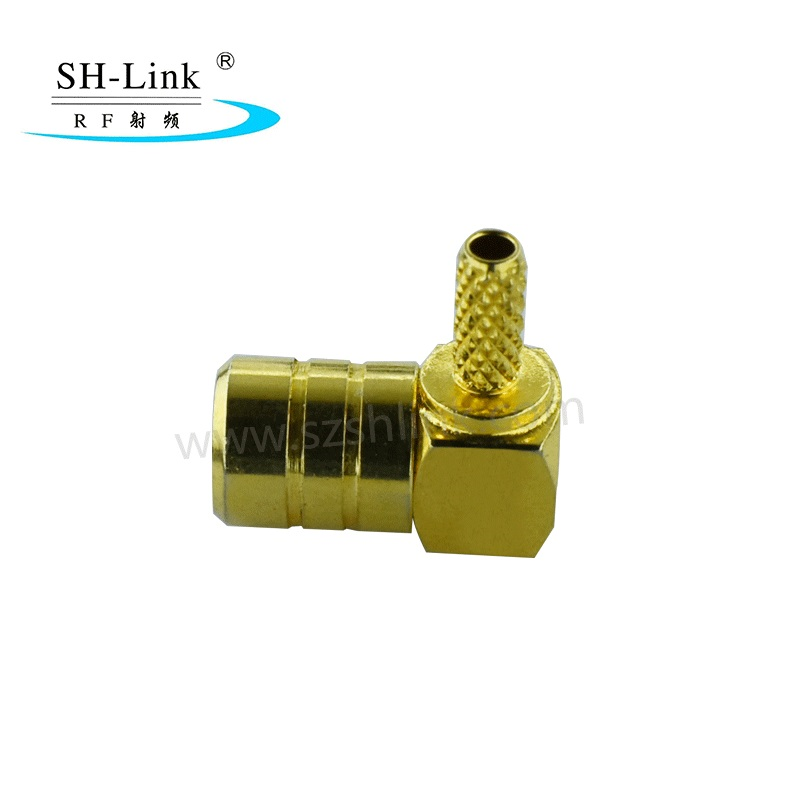

RF Coaxial SMB Female Jack Crimp Right Angle Connector for BT3002 Cable

Shenzhen Sihanming Technology Co.,Ltd.
Category: Electronic Components & Supplies

$1.00/1

Short Description
RF Coaxial SMB Female Jack Crimp Right Angle Connector for BT3002 Cable

Product Details

 RF Coaxial SMB Female Jack Crimp Right Angle Connector for BT3002 Cable

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume ?Light weight?excellent electrical performance?Easy to use.They are widely used in connection with RF coaxial cable China in RF circuit of radio communication?test instrument?meter?radio station?TV station?the base ststion of the microwave system.

MAJOR TECHNICAL CHARACTERISTICS?

Temperature   range

-55—+155??PE Cable -40—+85??

Impedance

50Ω?75Ω

Frequency   range

DC-4GHz(50Ω);DC-2GHz(75Ω)

Working   voltage

335V r.m.s at   sea level

Withstanding   voltage

1000V r.m.s   at sea level

SMB Connector Contact   resistance



Center   contact

≤6mΩ

Outer contact

≤1mΩ

Insulation   resistance

≥1000MΩ

Center   conductor retention force

≥0.28N

Insertion   loss

0.30dB/1.5GHz

Engagement   force

8~63N

Disengagement   force

8~63N

Voltage   Standing Wave Ratio



Straight

≤1.35/3GHz

Right angle

≤1.45/1GHz

Durability(mating)

≥500(Cycles)
