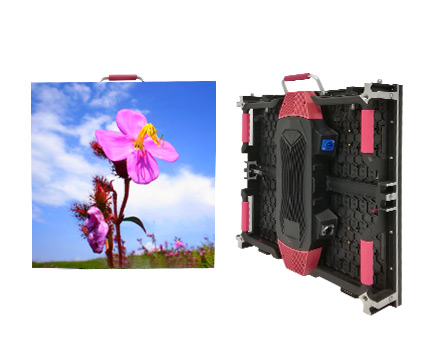

IRS Series Indoor Narrow Pixel Pitch IRS series indoor rental led display Iphone shape advertising led display
500*500mm/500*1000mm cabinet
P3.91/P4.81mm
Black SMD LEDs
Contrast: 8000:1
Indoor Rental IRS Series Features
Easy Installation
Spring Lock Connection design with micro-adjustment.
Stable & Reliable
High Precision Die-Casting Aluminum
Light weight
Urtra-Thin Die-casting Cabinet
Quality Materials
Strong Cabinet
Full Black and Mat LED lamp to ensure high contrast ratio
Good ventilation Design
Reliable stainless locks.
Seetronic or Neutrik Connectors
Easy Maintenance
Double protection against Bump
Quick replacement of all the parts
Cover protection for all LEDs
Indoor Rental IRS Series Specification
|
Parameter
|
|
|
|
Model Type
|
IRS 3.91
|
IRS 4.81
|
|
Pixel Pitch (mm)
|
3.91
|
4.81
|
|
Grey Level:
|
65536
|
43222
|
|
LED type:
|
SMD2121
|
SMD2121
|
|
Module Size:?mm)
|
250mm*250mm
|
250mm*250mm
|
|
Cabinet Size :?mm)
|
500mm x 500mm x 70mm
|
500mm x 500mm x 70mm
|
|
Cabinet type:
|
Die-casting
|
Die-casting
|
|
Weight
|
28kg/m2
|
28kg/m2
|
|
Brightness
|
1,200 nits
|
1,300 nits
|
|
Scanning
|
1/16 scan
|
1/13 scan
|
|
Refresh Rate(HZ)
|
3840Hz
|
3840Hz
|
|
View Angle (50% brightness)
|
H≥160°, V≥160°
|
H≥160°, V≥160°
|
|
View Distance
|
3--100m
|
5--100m
|
|
Max. Power consumption(W)
|
550W/m2
|
580W/m2
|
|
Ave. Power consumption(W)
|
160W/m2
|
180W/m2
|
|
Input Voltage
|
AC 220/110±15%
|
AC 220/110±15%
|
|
MTBF
|
>= 10,000 hrs
|
>= 10,000 hrs
|
|
Operating Temperature
|
-30 ? ~ +60 ?
|
-30 ? ~ +60 ?
|
|
Operationg humidity
|
10%?75%
|
10%?75%
|
|
IP Grade( Front/ Rear)
|
IP31
|
IP31
|
|
Control System
|
Syn (NovaStar)
|
Syn (NovaStar)
|
|
Certificates
|
UL, CE,ROHS
|
UL, CE,ROHS
|
