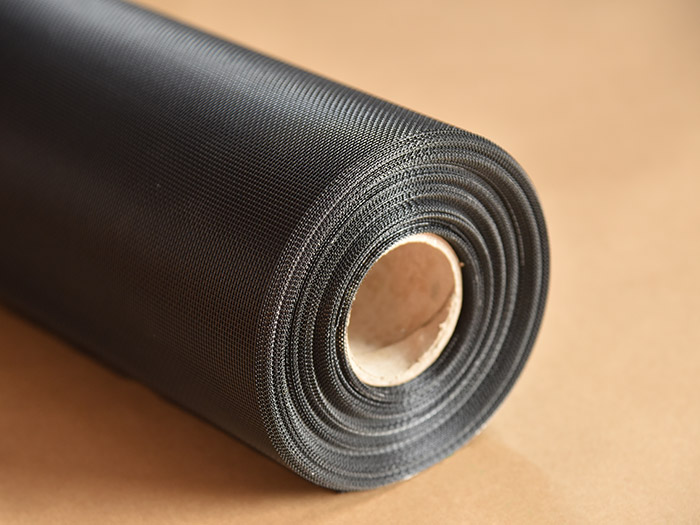

Epoxy coated wire mesh is referred to epoxy mesh.
The manufacturing process of epoxy mesh is to use the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the wire mesh woven from different metal wires. After a certain period of high temperature curing, the epoxy resin powder is melted and covered on the substrate. A dense protective layer is formed on the surface of the mesh.
Epoxy powder is divided into indoor and outdoor types, and special powders can be customized and developed according to customer requirements.
The substrate mesh usually includes low carbon steel mesh, aluminum alloy mesh and stainless steel mesh.
Epoxy mesh manufacturing standard: GB/T 17492-2019
Woven pattern: Plain wave rough edge / selvaged edge
Features of Epoxy Coated Wire Mesh:
After epoxy coating, the interweaving point of the metal mesh is fixed, the warp and weft are vertical, the mesh holes is uniform, not easy to loose and deform, the support for the filter paper is strengthened, the mesh surface is soft, easy to fold and form; the coating thickness is uniform with even and consistent color.
Application and Categories of Epoxy Coated Wire Mesh:
According to different Application, epoxy mesh can be divided into industrial epoxy mesh and civil epoxy mesh.
Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-carbon steel epoxy mesh, which are mainly used as the filter element support mesh of the filter, also known as hydraulic filter element protection mesh, hydraulic filter element metal mesh.
