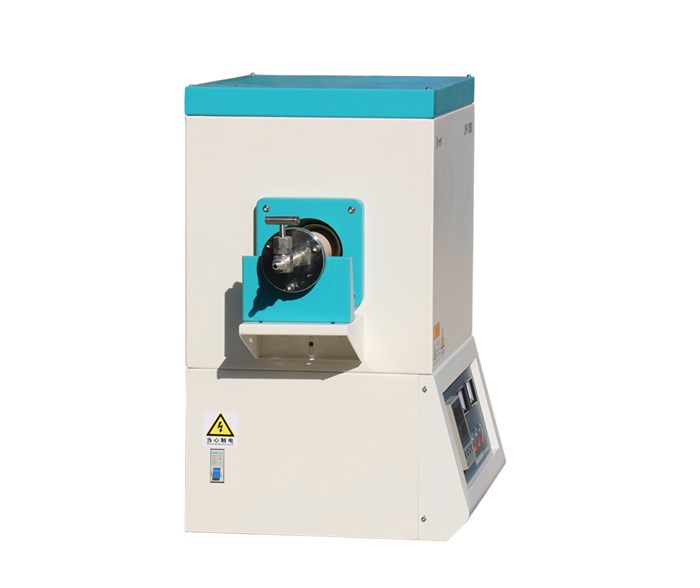

CHY-T1580B Laboratory High Temperature Dual Zone Tube Furnace High Temperature Tube Furnace Vacuum Tube Furnace Distributor
1.O.D80*1000 high purity Corundum Tube
2.High quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
5.Made by Henan Chengyi
CHENGYI Tube Furnace APPLICATION
1.Laboratory heat thermal processing
2.High Vacuum Sintering Heating Annealing Brazing
3.Laboratory Thin Film Preparation,Nano tube growthing
4.Laboratory CVD system,graphene growthing,preparation.
lab Tube Furnace PARAMETERS
|
Product Name
|
1500 Degree Tube Furnace
|
|
Model
|
T1580B
|
|
Furnace Door
|
Open Type Furnace
|
|
Display Model
|
Highlight LED display
|
|
Maximum Temperature
|
1350?
|
|
Working Temperature
|
≤1300?
|
|
Heating rate
|
≤20?/min Suggest:10?/min
|
|
Heating zones
|
two heating zone
|
|
Quartz Tube Diameter
|
O.D80*1000mm
|
|
Inner Diameter
|
I.D70*1000mm
|
|
Heating Zone Length
|
230+230mm
|
|
Constant Heating Zone
|
180+180mm
|
|
Control mode
|
Intelligent PID auto control
|
|
Temperature Accuracy
|
±1?
|
|
Temperature curve
|
30 segments programmable
|
|
Over heat alarm
|
Have
|
|
Overcurrent protection
|
Have
|
|
Thermocouple Failure Protection
|
Have
|
|
Temperature Sensor
|
S-type thermocouple
|
|
Heating Element
|
SiC Rod
|
|
Quartz Tube Material
|
High Purity Corundum Tube
|
|
After-sales service
|
12 month warranty, durable maintaince and repair support
|
|
Power Supply
|
220V 50HZ
|
|
Rated power
|
5.0kw
|
|
Overall dimensions
|
800×540×750 (mm )
|
|
Packing
|
3-ply wooden case
|
|
Accessories
|
Protective Glove,Crucible Tong,Crucible,Corundum Tube,
Vacuum Flange,User Manual.
|
CHENGYI is a trusted laboratory furnace manufacturer with a global reach. We can supply high quality electric muffle furnace and tubular furnace. Customized business is welcome!
