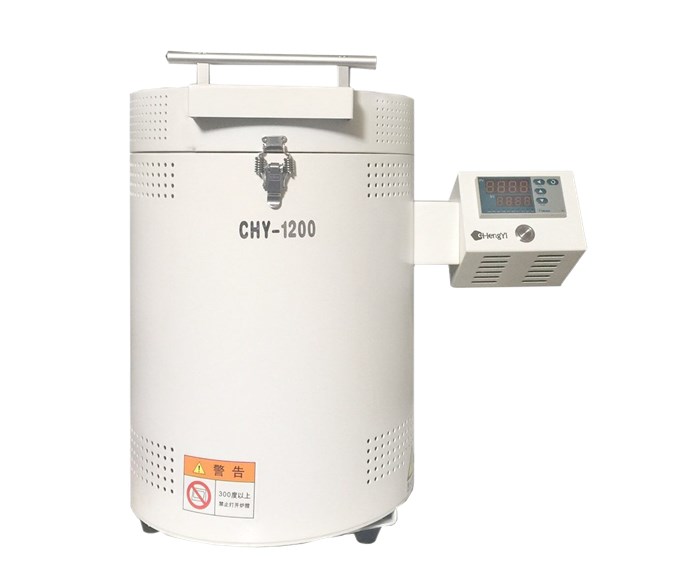

CHY-J1220 Laboratory Crucible Vertical Muffle Furnace Lab Muffle Furnace Manufacturer
Vertical Muffle Furnace
CHENGYI Customized Muffle Furnace
1.150*150*200mm chamber dimension
2.high quality ceramic fiber chamber
3.PID Programmable controller
4.Heavy duty double layer structure
CHENGYI Muffle Furnace APPLICATION
1.laboratory heat thermal processing cement, building materials industry etc
2.Pharmaceutical medicines inspection, preteatment of medical sample
3.Analytical Chemistry Industry: water analysis and environmental analysis
4.Laboratory Gemstone,Crystal Growthing
Electric Lab Muffle Furnace PARAMETERS
|
1
|
Product Name
|
1200 Degree Vertical Muffle Furnace
|
|
2
|
Model
|
J1220
|
|
3
|
Furnace Door
|
Top open type
|
|
4
|
Display Model
|
Highlight LED display
|
|
5
|
Maximum Temperature
|
1150?
|
|
6
|
Working Temperature
|
≤1100?
|
|
7
|
Heating rate
|
≤20?/min Suggest:10?/min
|
|
8
|
Heating zones
|
Single heating zone
|
|
9
|
Hearth dimensions
|
150mm×150mm×200mm
|
|
10
|
Hearth volume
|
3L
|
|
11
|
Control mode
|
Intelligent PID auto control
|
|
12
|
Temperature Accuracy
|
±1?
|
|
13
|
Temperature curve
|
30 segments programmable
|
|
14
|
Over heat alarm
|
Have
|
|
15
|
Overcurrent protection
|
Have
|
|
16
|
Thermocouple Failure Protection
|
Have
|
|
17
|
Temperature Sensor
|
K-type thermocouple
|
|
18
|
Heating Element
|
Fe-Cr-Al Alloy doped by Mo
|
|
19
|
Hearth Material
|
high purity alumina fiber
|
|
20
|
After-sales service
|
12 month warranty, durable maintaince and repair support
|
|
21
|
Power Supply
|
220V 50HZ
|
|
22
|
Rated power
|
2.0kw
|
|
23
|
Overall dimensions
|
500×340×490 (mm )
|
|
24
|
Packing
|
3-ply wooden case
|
|
25
|
Accessories
|
Plate,Protective Glove,Crucible Tong,Crucible,User Manual.
|
Founded in 2013, CHENGYI is a manufacturer of lab equipment. We not only can supply standard lab equipment, but also we do customized as request. We sincerely welcome worldwide friend come to visit us!
