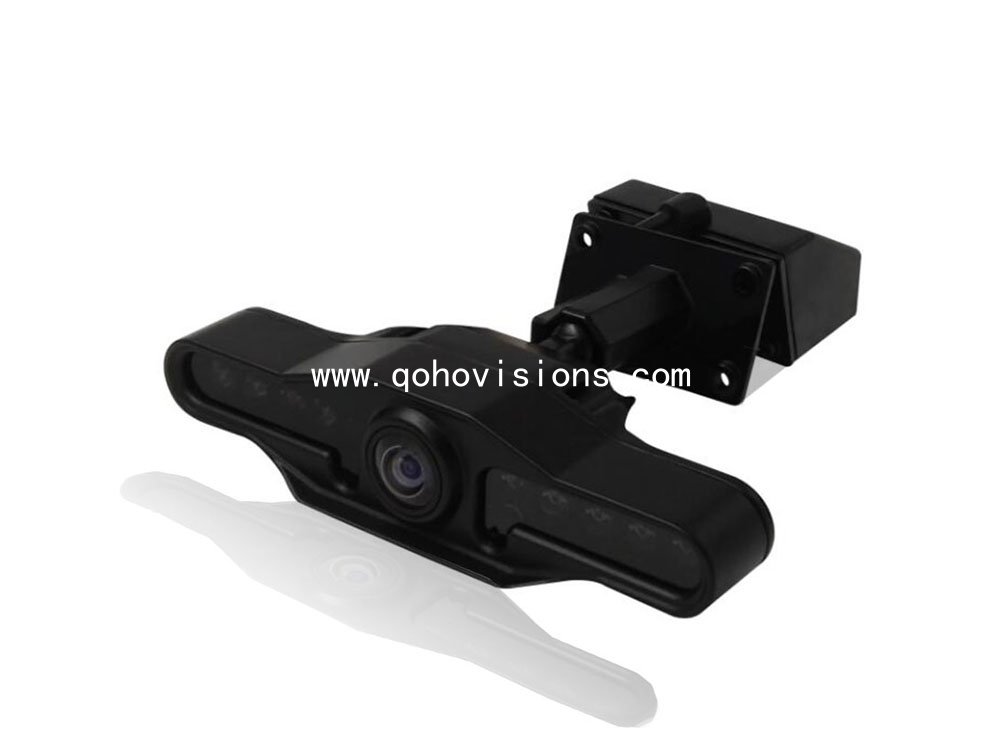

• Dual camera with one body Mini vehicle wide view camera;
• It can record in the front of car(outside) and inside at the same time;
• Special design for Taxi inside use.
• Horizontal view angle:130 degree,can synchronous take driver and passenger’s video recording;
• Excellent night-vision,clear image,little noise
• When IR light is ON,it won’t have infrared visible line,
so that won’t distract driver’s sight, so it can be safe driving.
• 1080P AHD Dual Camera 2.1mm lens(140 degree)
• Front road view 3.6mm lens,if need wide view, we can make OEM/ODM with good quantities.
In 2009, And our branch office is in Hongkong. In 2008 2011, we made great progress for our security mobile DVR & car cameras series. In addition, our 1080P AHD Dual Camera, Road Safety View Camera and 720P Dual Lens Camera.
|
Model
|
QH-MC810C-HHP
|
|
Image Sensor
|
1080P AHD
|
|
Synchronization
|
INT
|
|
Scanning
|
2:1 Interlace
|
|
Horizontal Resolution
|
1920*1080
|
|
Horizontal angle
|
140 degree(wide view)
|
|
IR LED
|
10pcsΦ8 IR 940nm LED
|
|
IR Distance
|
5m
|
|
Mini CMOS(inside back bracket)
|
High-resolution CMOS,3.6m lens
|
|
Minimum Illumination
|
0Lux(IR ON)
|
|
Gamma modification
|
0.45
|
|
Gain control
|
Auto
|
|
White Balance
|
Auto
|
|
Electronic shutter
|
1/60(1/50)~1/100,000 sec
|
|
Video output
|
1.0Vp-p Composite Video Output,75ohm
|
|
Lens
|
2.1mm
|
|
S/N Ratio
|
More than 48dB
|
|
Operational Voltage
|
DC12V
|
|
Operational Temperature
|
(- 25?~+85?)
|
|
Application use
|
Vehicle include taxi, bus, car inside use.
|
|
Body size
|
126x30x100mm
|
